3935Radiator

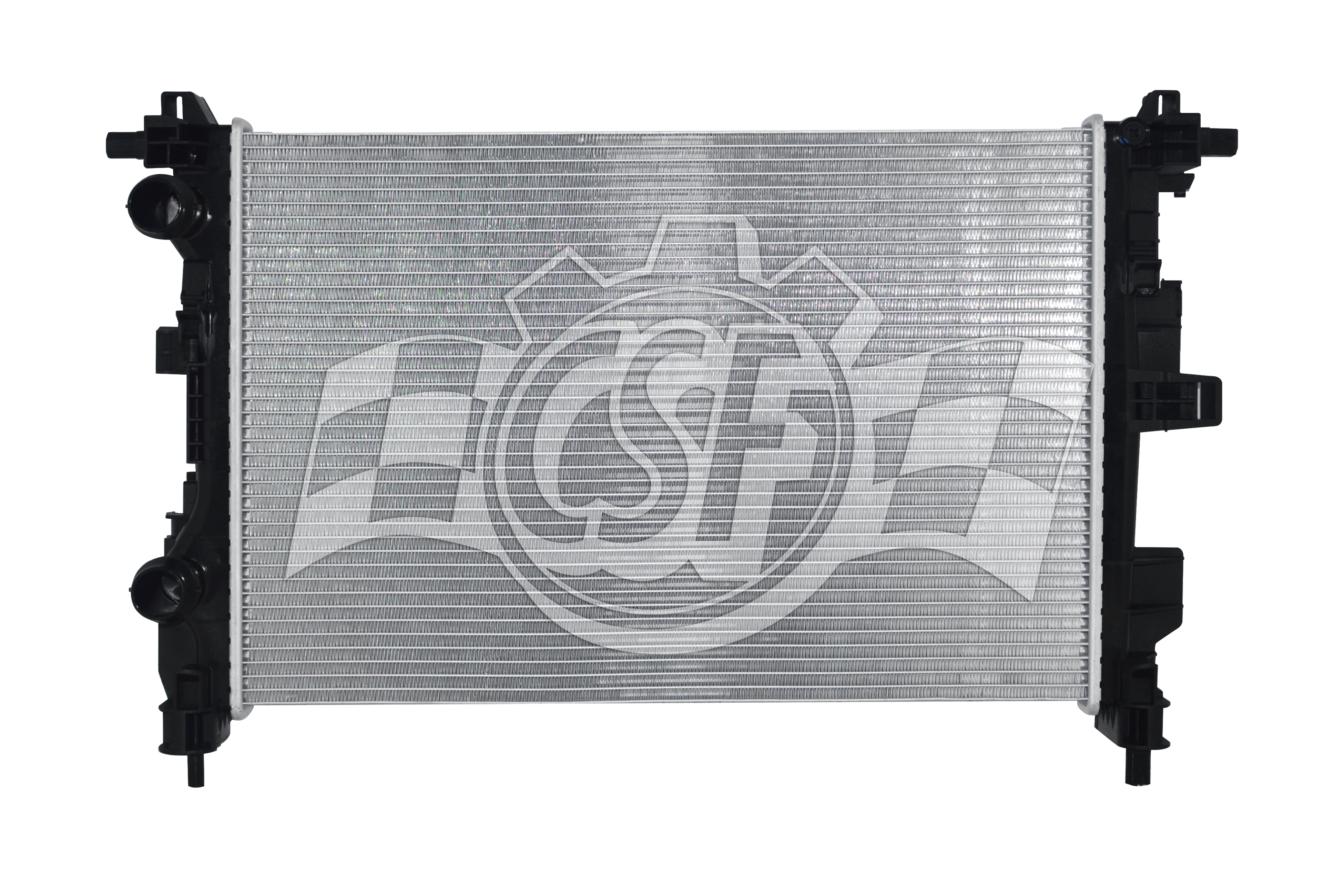

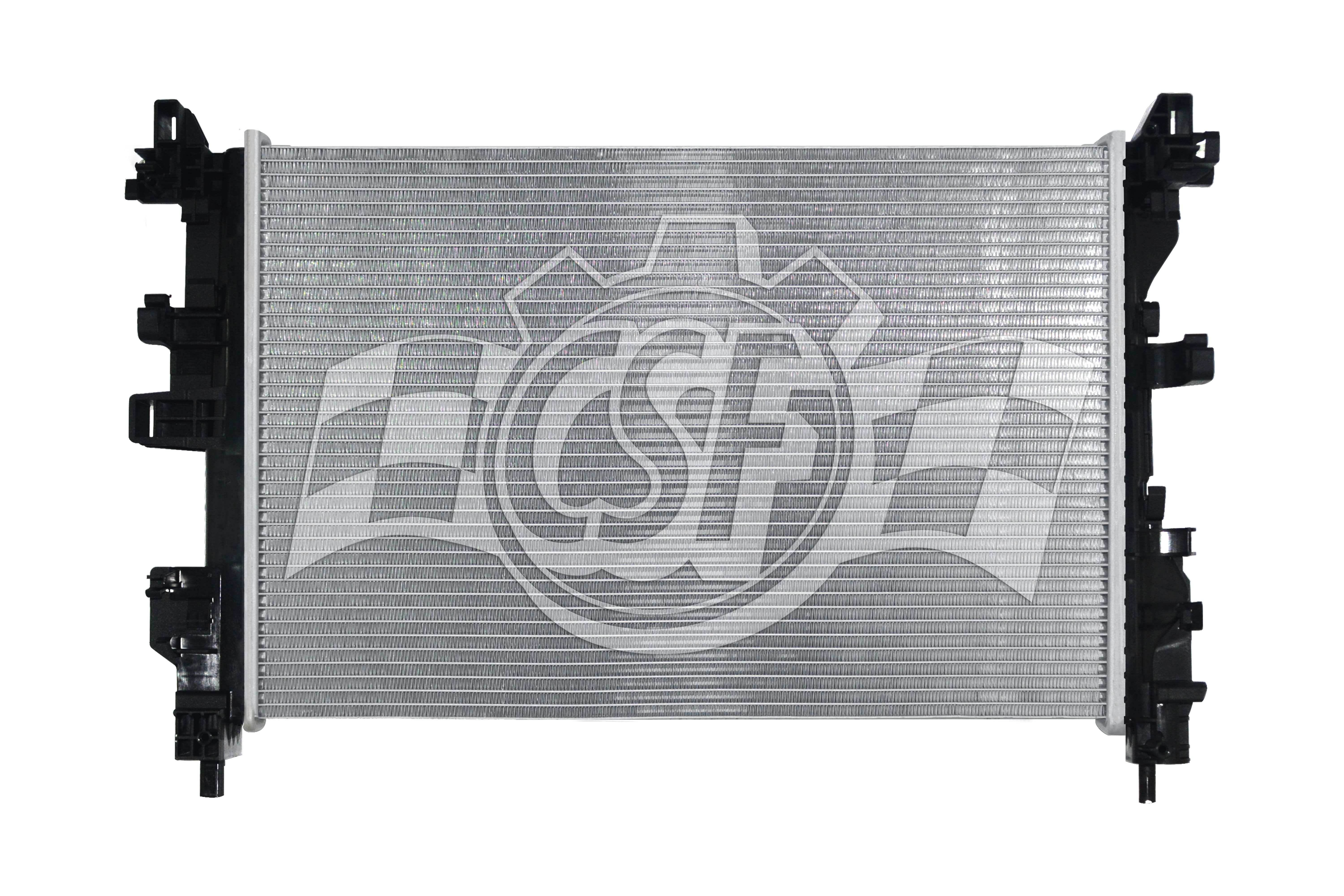

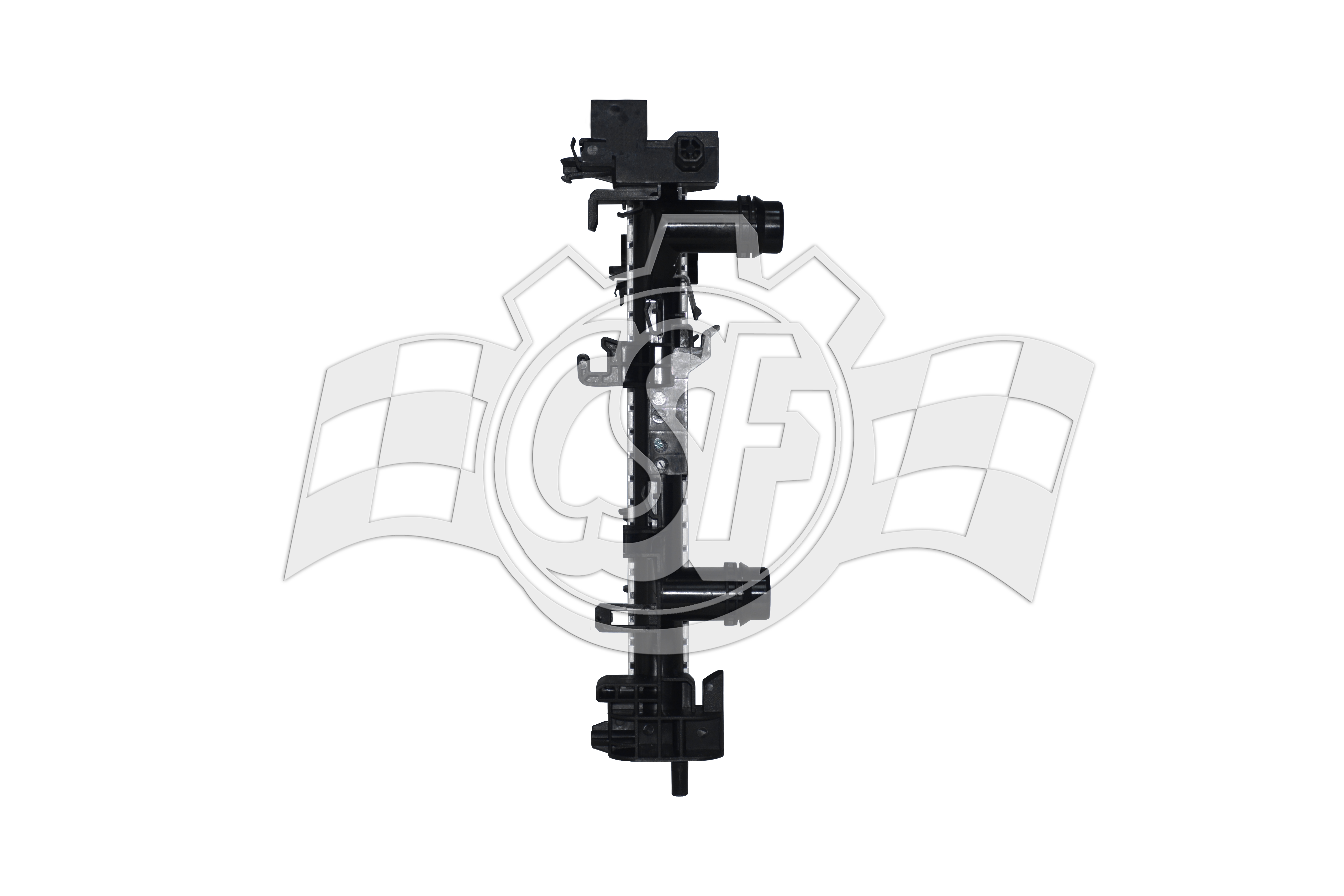

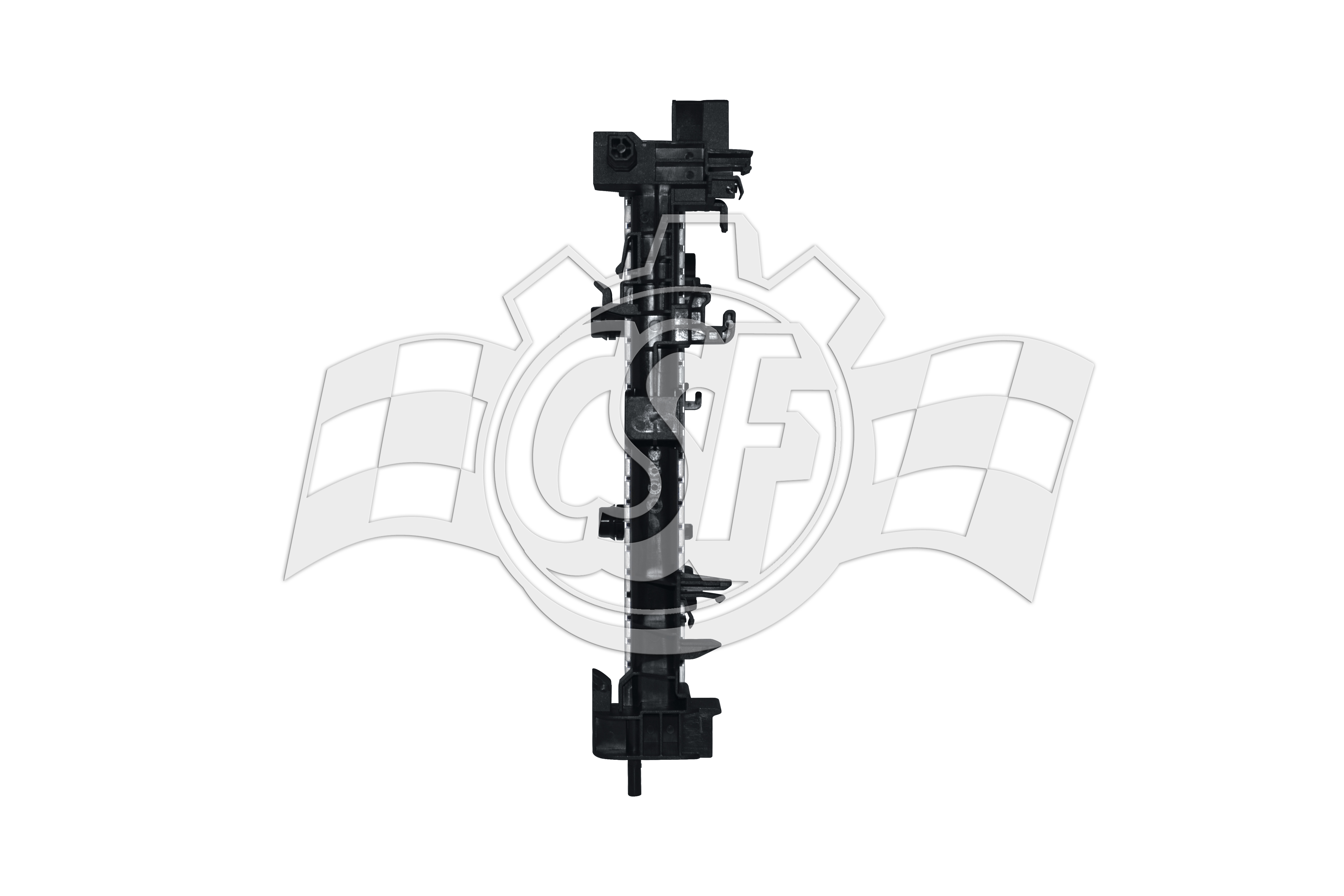

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road
Bottom Hose Fitting (in): 1 1/2 Left (in)
Box Height (in): 7 7/16
Box Length (in): 32 5/8
Box Weight (lbs): 10
Box Width (in): 21 15/16
Core Length (in): 23 13/16 (in)
Core Material: Aluminum
Core Thickness (in): 7/8 (in)
Core Width (in): 16 1/16 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 16 5/8
Inlet Width (in): 1 3/8
No. Of Rows: 1
Oil Cooler (in): No
Outlet Length (in): 16 5/8
Outlet Width (in): 1 3/8
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tank & Aluminum core with quick-connect inlet & outlet pipe.
Top Hose Fitting (in): 1 1/2 Left (in)
Make Model Qualifiers Year
Fiat 500X
  • Position: N/A
  • 2.4L L4 2360cc 144ci
 2016-2018
Jeep Renegade
  • Position: N/A
  • 2.4L L4 2360cc 144ci
 2015-2022
Ram ProMaster City
  • Position: N/A
  • 2.4L L4 2360cc 144ci
 2015-2018

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
13533DPI
68247208AAOEM
CH3010369Partslink
