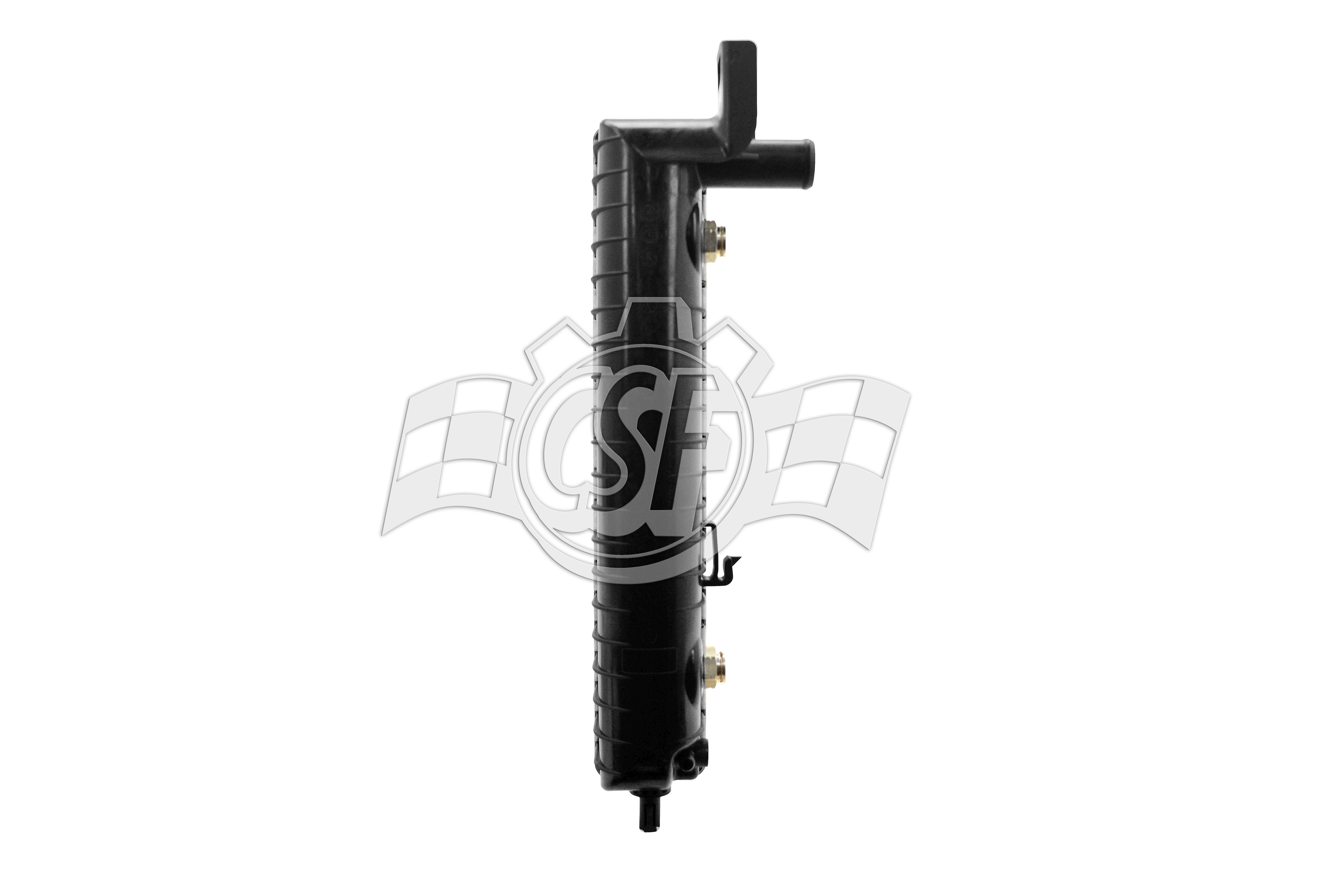

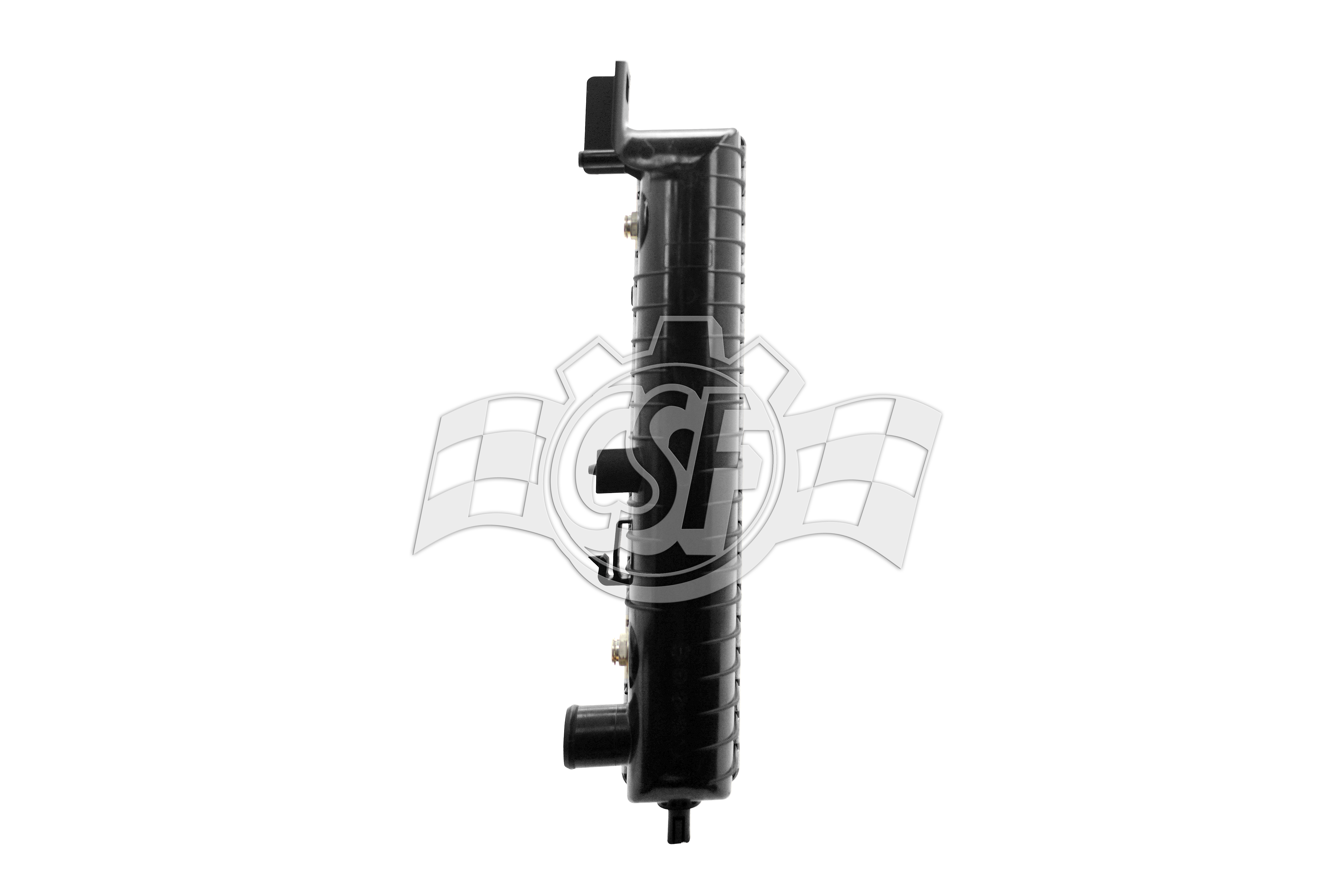

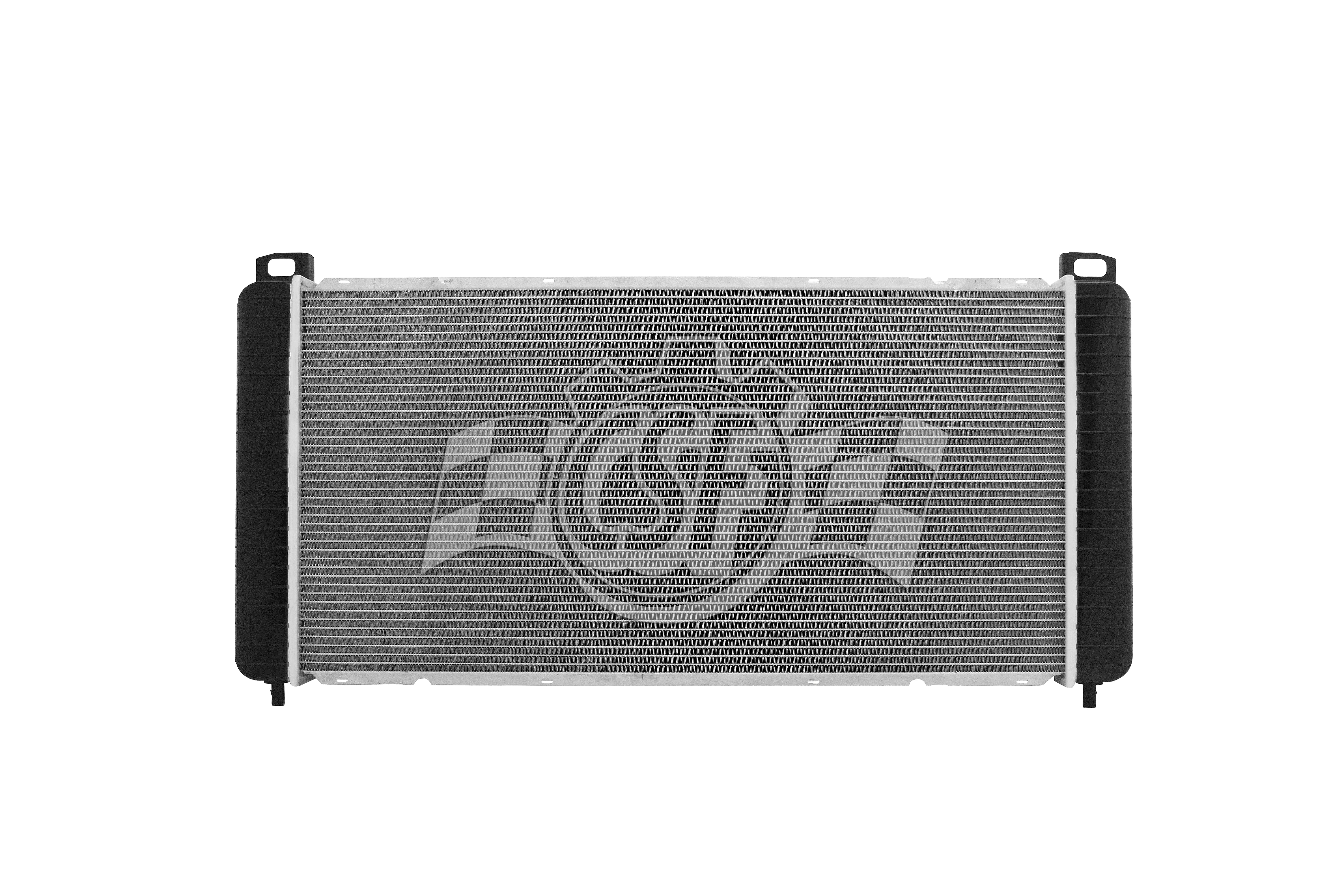

3728Radiator

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 9/16 Right (in)
Box Height (in): 7 1/16
Box Length (in): 41 7/8
Box Weight (lbs): 19
Box Width (in): 23 9/16
Core Length (in): 34 (in)
Core Material: Aluminum
Core Thickness (in): 1 1/4 (in)
Core Width (in): 17 1/4 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 18 1/16
Inlet Width (in): 2 3/4
No. Of Rows: 1
Oil Cooler (in): 11 1/2 (high-efficiency Plate Type) ;11 1/2 (high-efficiency Plate Type)
Outlet Length (in): 18 1/16
Outlet Width (in): 2 3/4
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. Upgraded Heavy Duty Core. 11% Thicker 31mm vs OEM 27mm
Top Hose Fitting (in): 1 5/16 Left (in)
Make Model Qualifiers Year
Cadillac Escalade
  • Position: N/A
  • 6.2L V8 6162cc 376ci
 2009-2014
Cadillac Escalade
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2009-2013
Chevrolet Silverado 1500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2003-2010
Chevrolet Silverado 3500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2008-2010
Chevrolet Suburban 1500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2007-2009, 2011-2013
Chevrolet Suburban 1500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
 2007-2014
Chevrolet Tahoe
  • Position: N/A
  • 6.2L V8 6162cc 376ci
 2008-2009
GMC Sierra 1500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2007-2010
GMC Yukon
  • Position: N/A
  • 5.3L V8 5328cc 325ci
 2007-2014
GMC Yukon
  • Position: N/A
  • 6.2L V8 6162cc 376ci
 2007-2014
GMC Yukon XL 1500
  • Position: N/A
  • 6.2L V8 6162cc 376ci
 2007-2014
GMC Yukon XL 1500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
 2007-2009
GMC Yukon XL 1500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2007-2009
Hummer H2
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2003-2007

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
13029DPI
22840115OEM
22840116OEM
2370DPI
CU2370SPI
GM3010274Partslink
GM3010476Partslink
