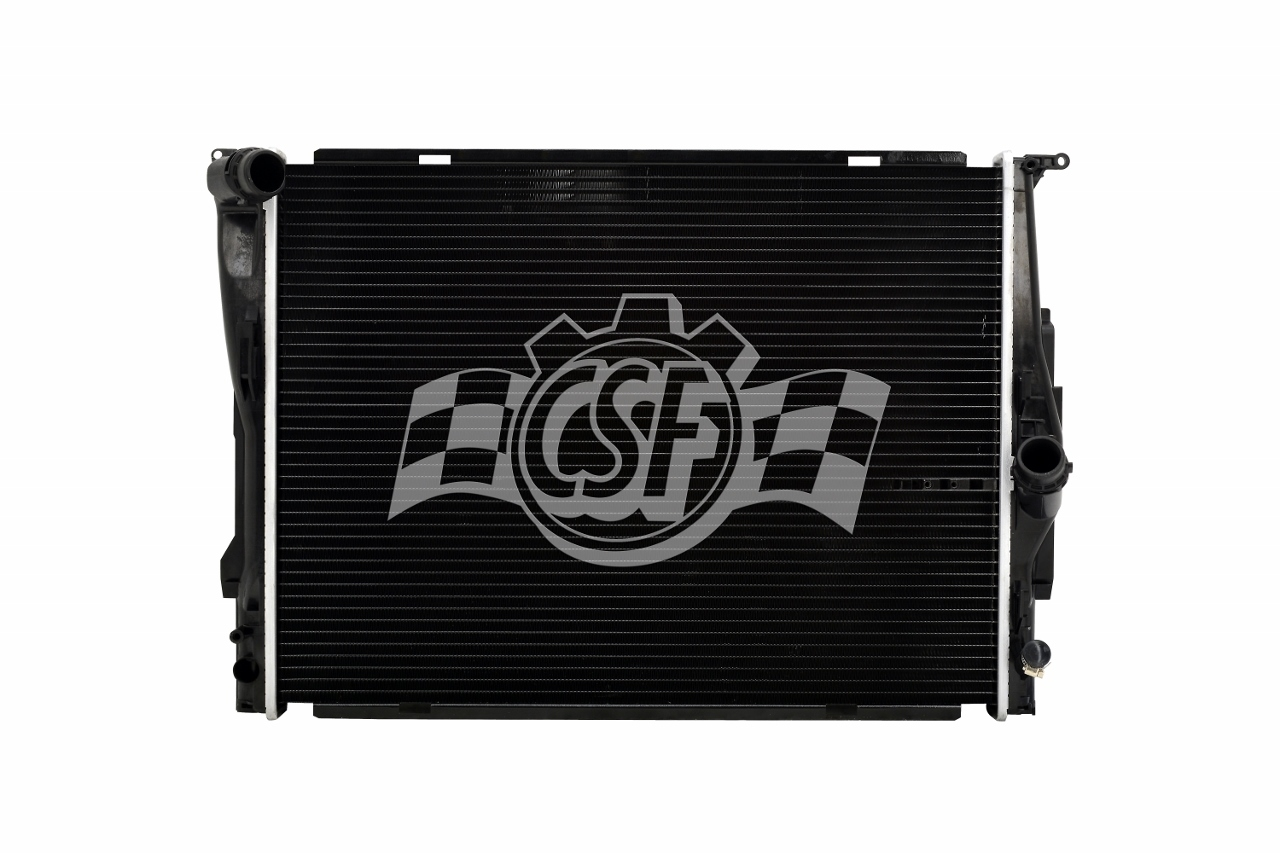

3718Radiator
1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 1/2 Right (in)
Box Height (in): 6 1/16
Box Length (in): 29 11/16
Box Weight (lbs): 10
Box Width (in): 21

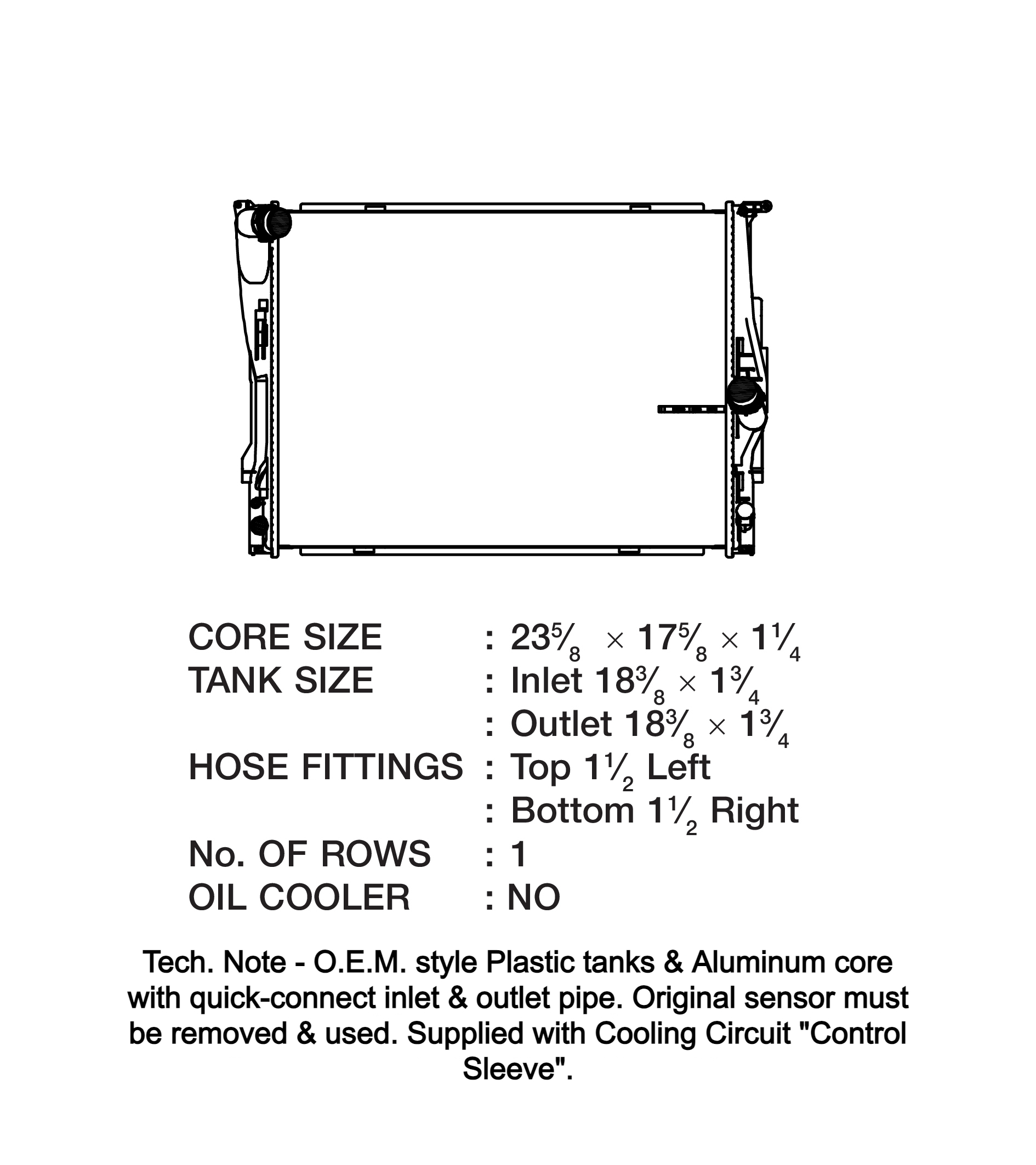

Core Length (in): 23 5/8 (in)
Core Material: Aluminum
Core Thickness (in): 1 1/4 (in)
Core Width (in): 17 5/8 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 18 3/8
Inlet Width (in): 1 3/4
No. Of Rows: 1
Outlet Length (in): 18 3/8
Outlet Width (in): 1 3/4
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe;With OEM-Style built-in sensor ports & bracket;Removable OEM Sensor must be used;OEM-Style, color-coded, pre-tested Control Sleeves included.
Top Hose Fitting (in): 1 1/2 Left (in)
Make Model Qualifiers Year
BMW 128i
  • Position: N/A
  • 3.0L L6 2996cc 183ci
 2013
BMW 128i
  • Position: N/A
  • 3.0L L6 2996cc
 2008-2013
BMW 323i
  • Position: N/A
  • 2.5L L6 2497cc
 2006-2011
BMW 325Ci
  • Position: N/A
  • 2.5L L6 2494cc 152ci
 2006
BMW 325i
  • Position: N/A
  • 2.5L L6 2494cc 152ci
 2006-2010
BMW 325i
  • Position: N/A
  • 2.5L L6 2497cc
  • Sedan
 2011
BMW 325i
  • Position: N/A
  • 3.0L L6 2996cc
 2006
BMW 325xi
  • Position: N/A
  • 3.0L L6 2996cc
 2006
BMW 328i
  • Position: N/A
  • 3.0L L6 2996cc
 2007-2013
BMW 328i
  • Position: N/A
  • 2.0L L4 1997cc 122ci
 2012-2013
BMW 328i xDrive
  • Position: N/A
  • 3.0L L6 2996cc
 2009-2013
BMW 328xi
  • Position: N/A
  • 3.0L L6 2996cc
 2007-2008
BMW 330Ci
  • Position: N/A
  • 3.0L L6 2979cc
 2006
BMW 330i
  • Position: N/A
  • 3.0L L6 2979cc
 2006-2007
BMW 330i
  • Position: N/A
  • 3.0L L6 2996cc
 2006
BMW 330xi
  • Position: N/A
  • 3.0L L6 2996cc
 2006
BMW Z4
  • Position: N/A
  • sDrive30i
  • 3.0L L6 2996cc
 2009-2011

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
13392DPI
17117537292OEM
17 11 7 559 273OEM
17 11 7 562 079OEM
2824DPI
2882DPI
8013392APDI
BM3000147Partslink
BM3000148Partslink
CU2882SPI
