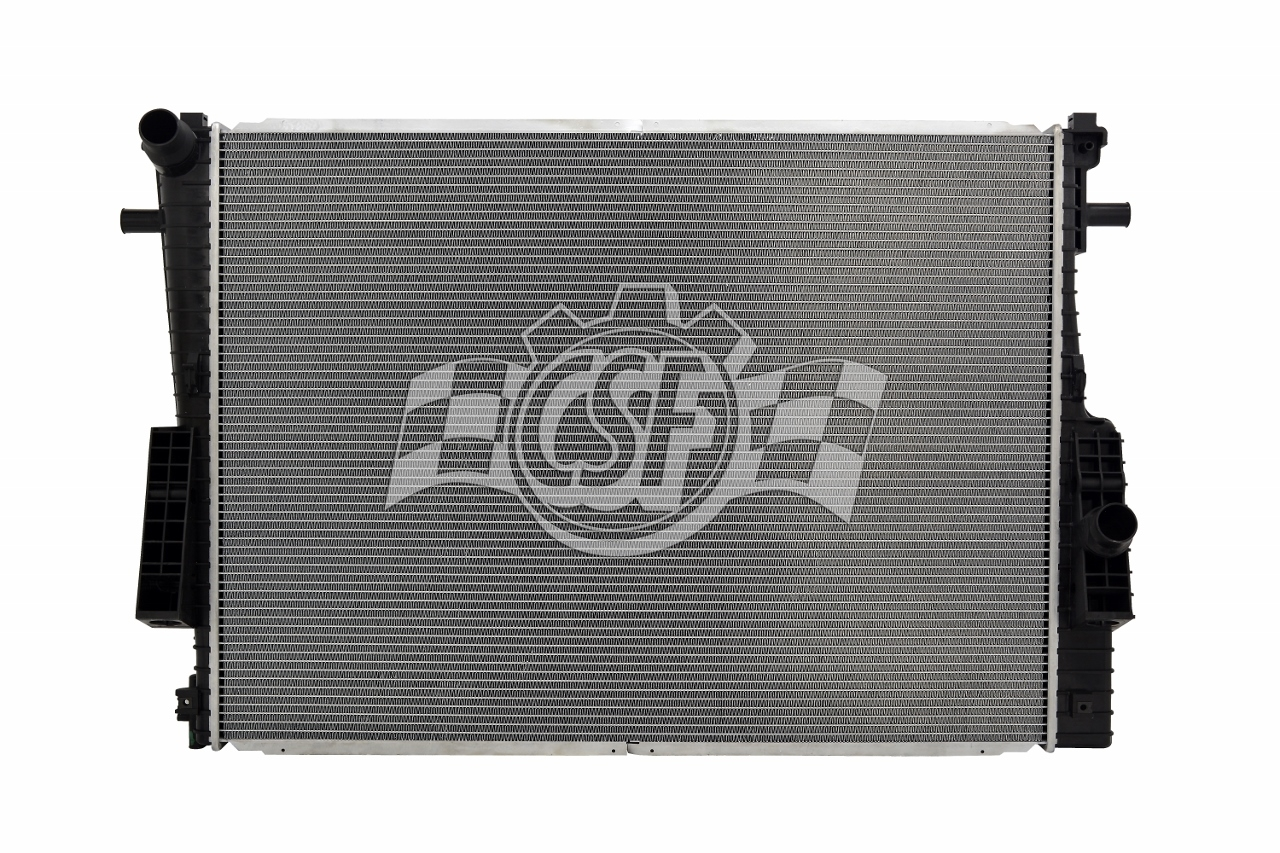

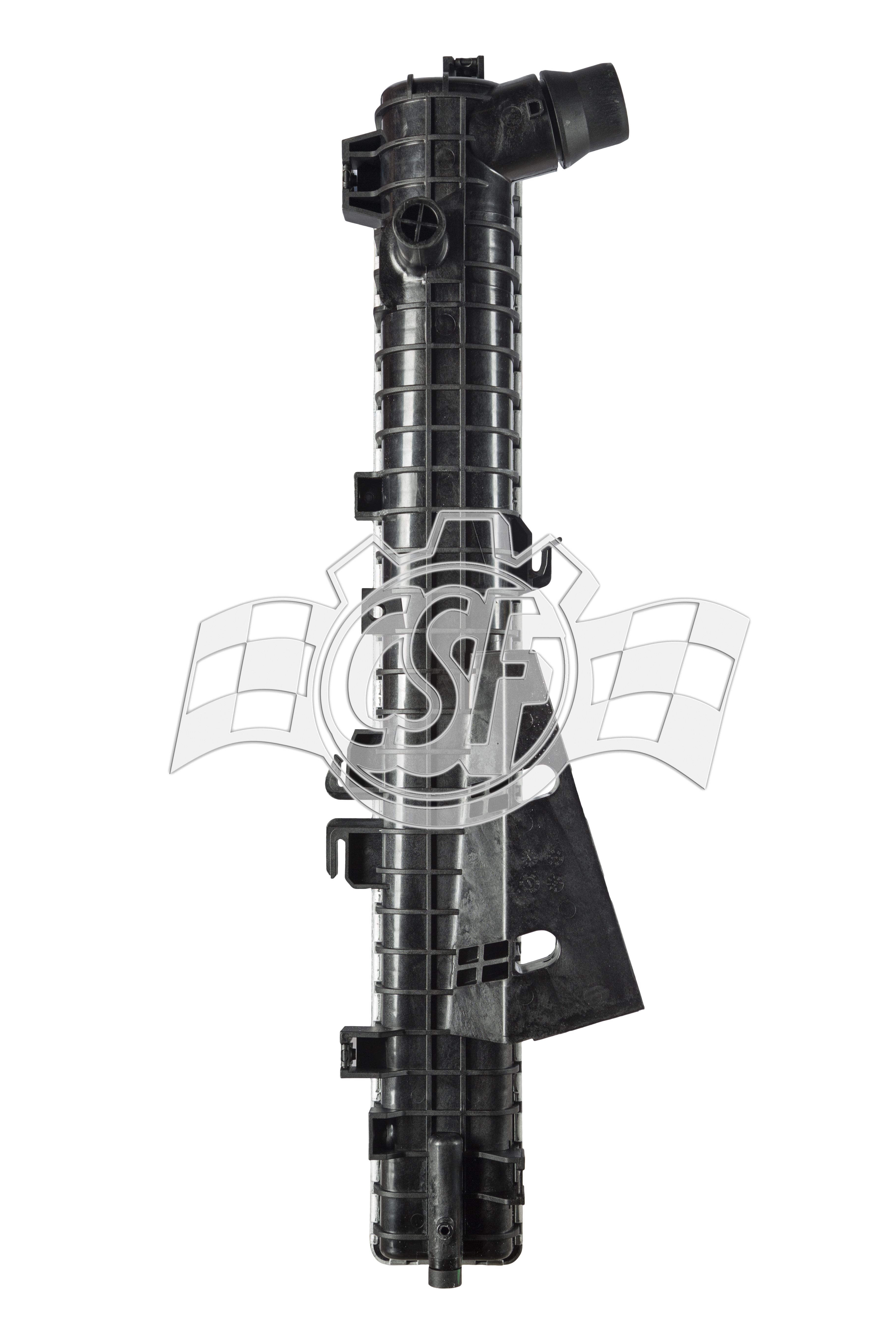

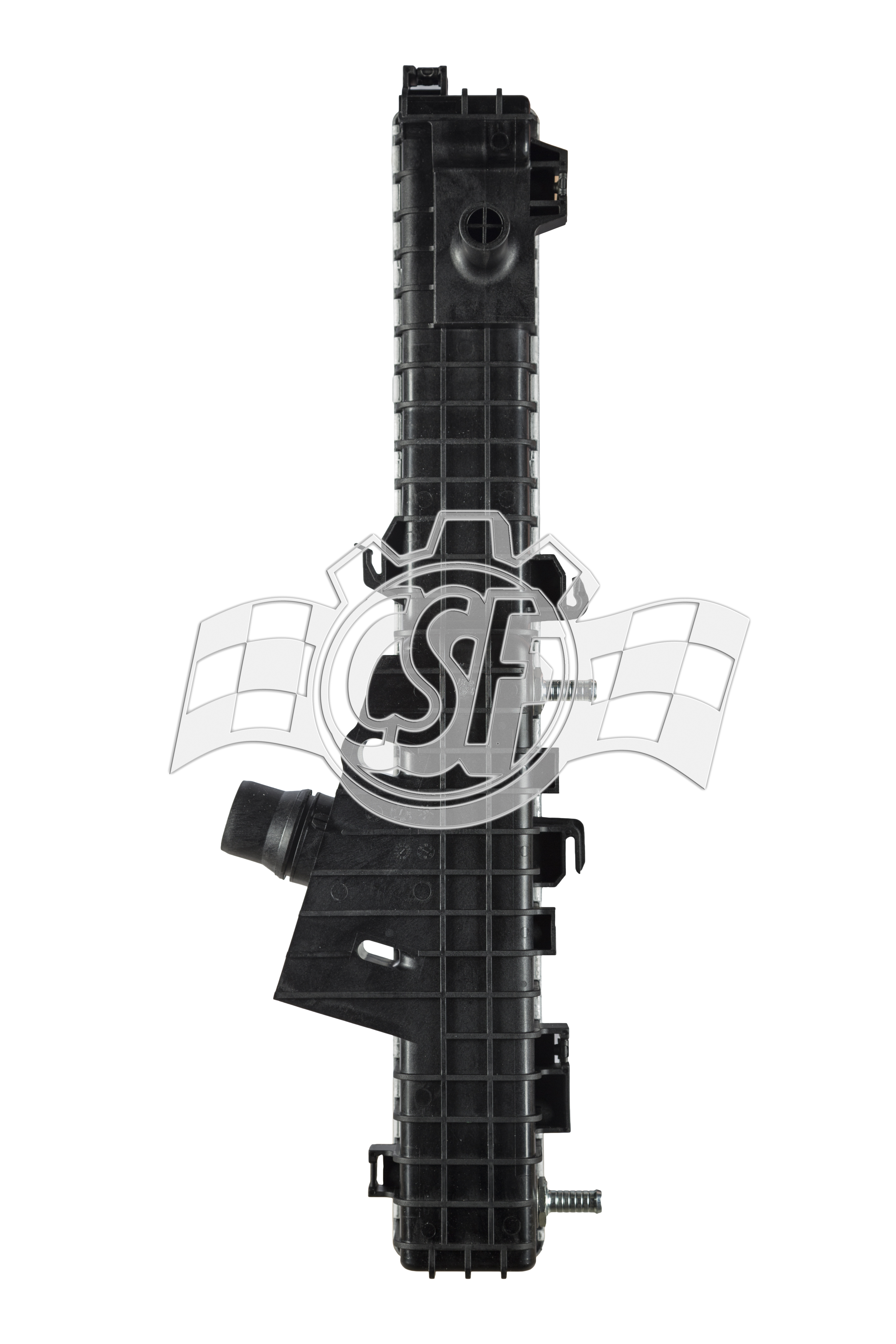

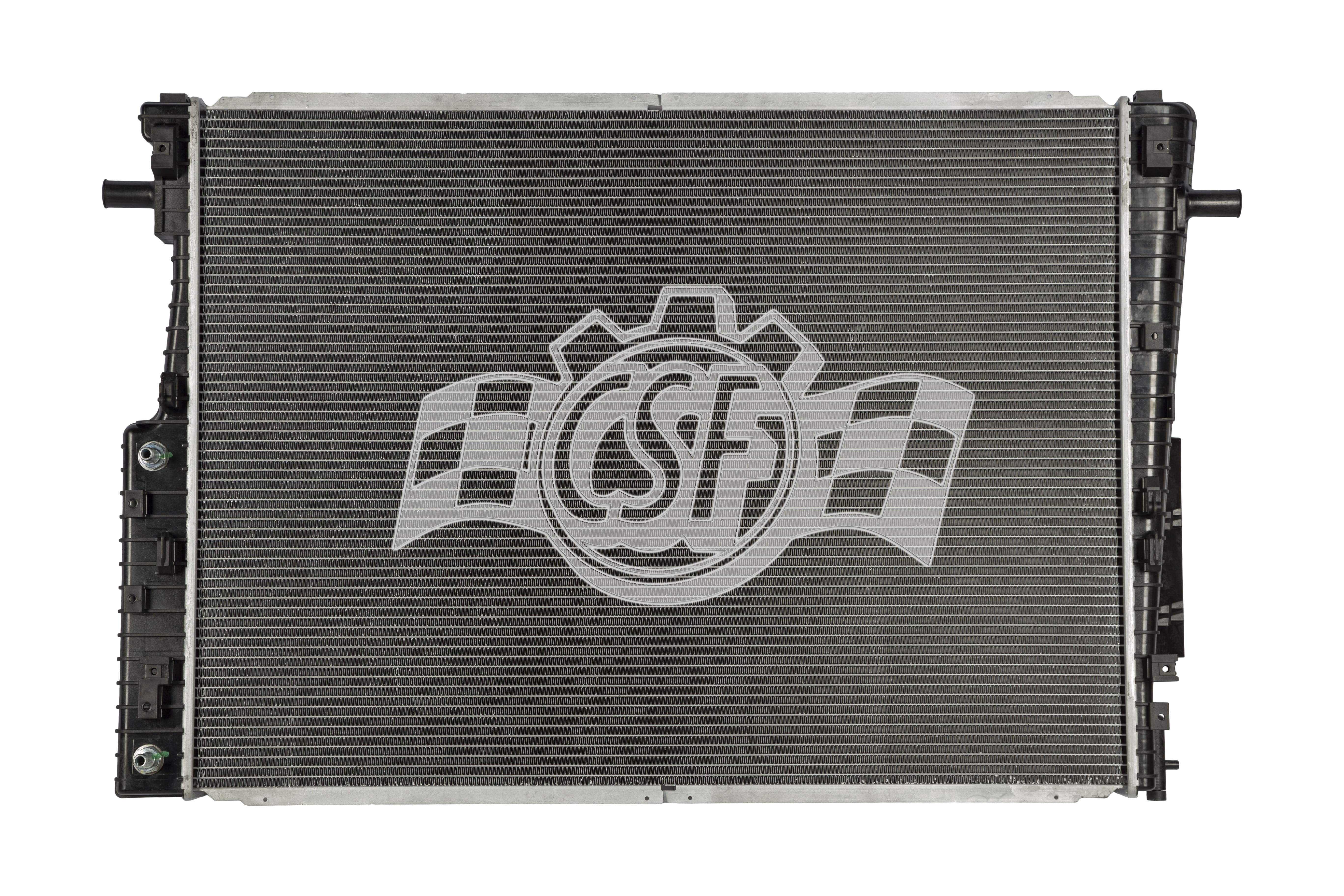

3642Radiator
2 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 13/16 Right (in)
Box Height (in): 11 9/16
Box Length (in): 48
Box Weight (lbs): 44
Box Width (in): 31 13/16

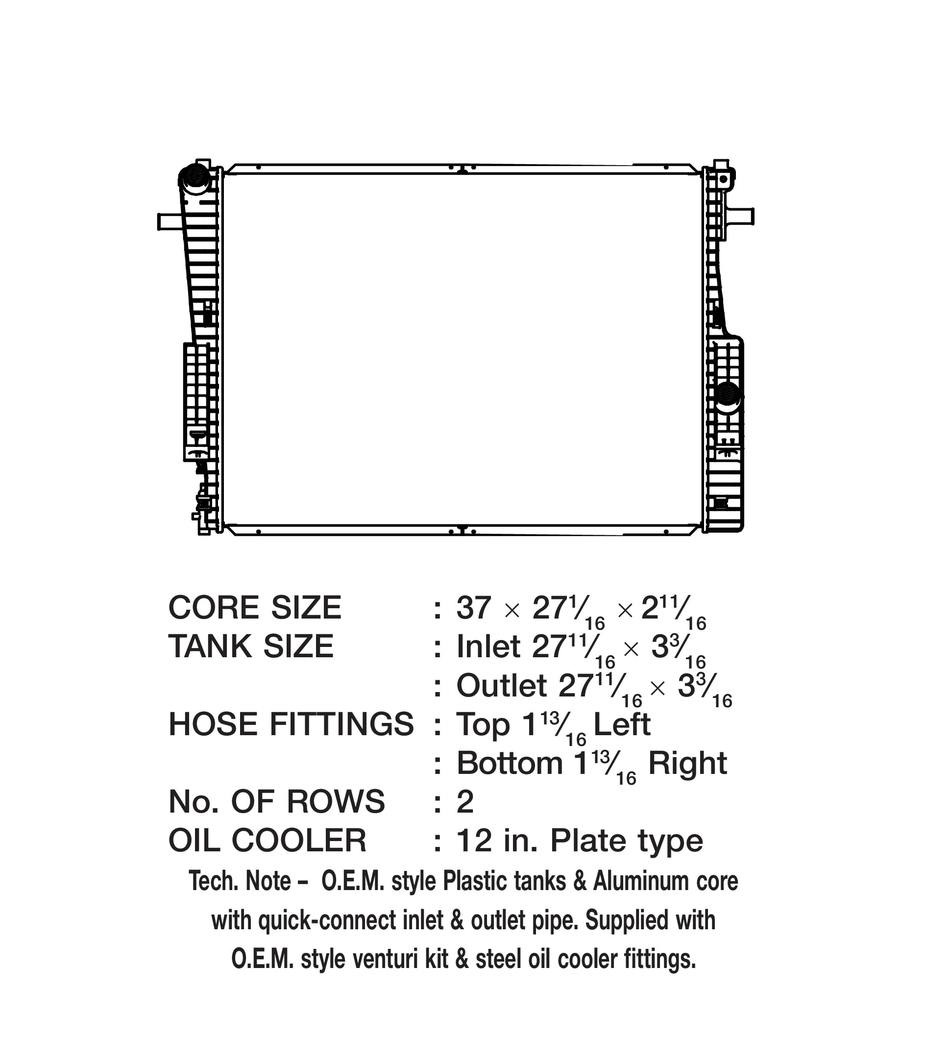

Core Length (in): 37 (in)
Core Material: Aluminum
Core Thickness (in): 2 11/16 (in)
Core Width (in): 27 1/16 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 27 11/16
Inlet Width (in): 3 3/16
No. Of Rows: 2
Oil Cooler (in): 12 (high-efficiency Plate Type)
Outlet Length (in): 27 11/16
Outlet Width (in): 3 3/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core; OEM style Venturi Kit Included (required to complete correct installation) - $20 Value!; OEM style 2 11/16" Core; Quick-Connect inlet & outlet pipe;OEM style steel oil cooler fittings
Top Hose Fitting (in): 1 13/16 Left (in)
Make Model Qualifiers Year
Ford F-250 Super Duty
  • Position: N/A
  • 6.4L V8 391ci
  • DIESEL
 2008-2010
Ford F-350 Super Duty
  • Position: N/A
  • 6.4L V8 391ci
  • DIESEL
 2008-2010
Ford F-450 Super Duty
  • Position: N/A
  • 6.4L V8 391ci
  • DIESEL
 2008-2010
Ford F-550 Super Duty
  • Position: N/A
  • 6.4L V8 391ci
  • DIESEL
 2008-2010

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
13022DPI
8013022APDI
8C3Z 8009 BOEM
8C3Z 8009 FOEM
CU13022SPI
FO3010312Partslink
