Vehicle Fitment Finder
3602Radiator
2 Row Plastic Tank Aluminum Core

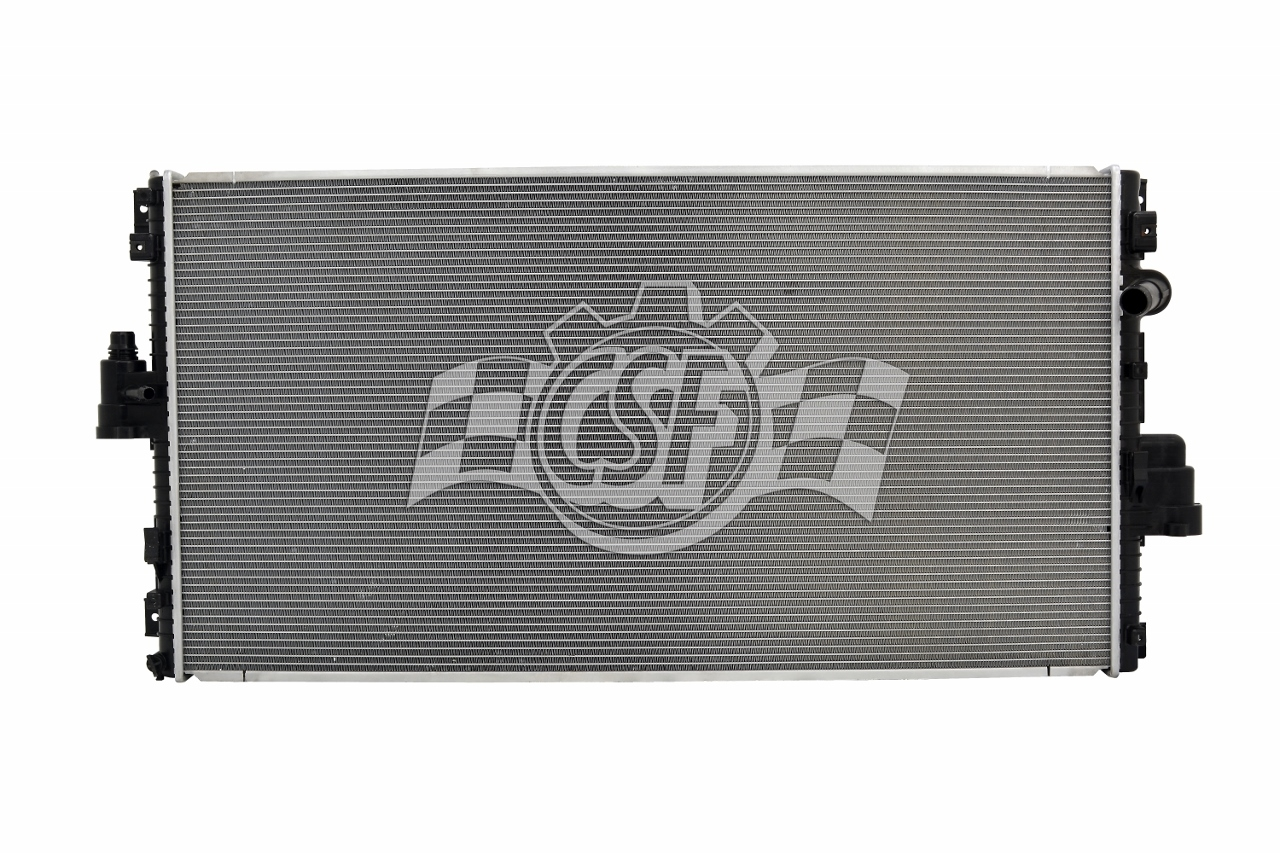

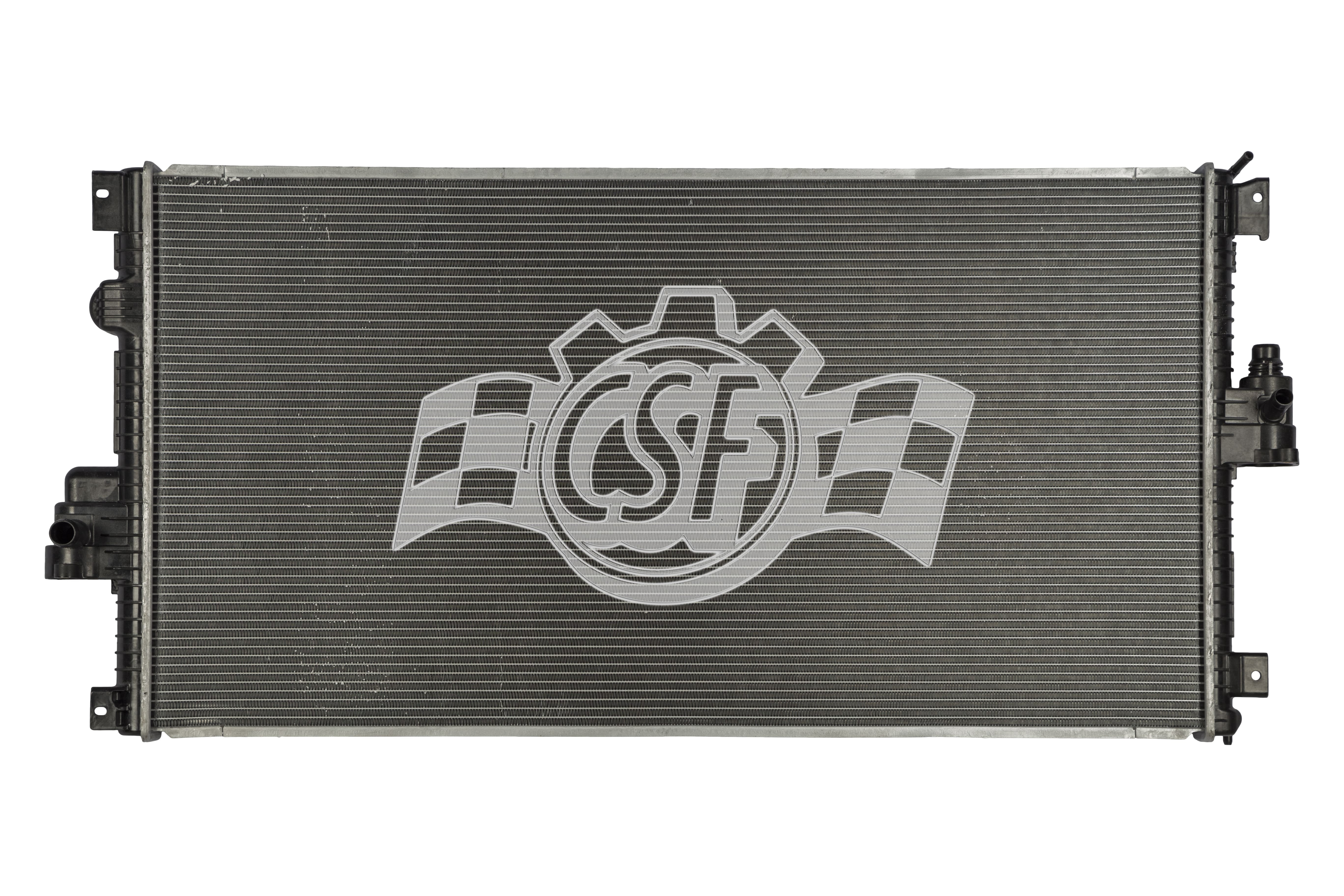

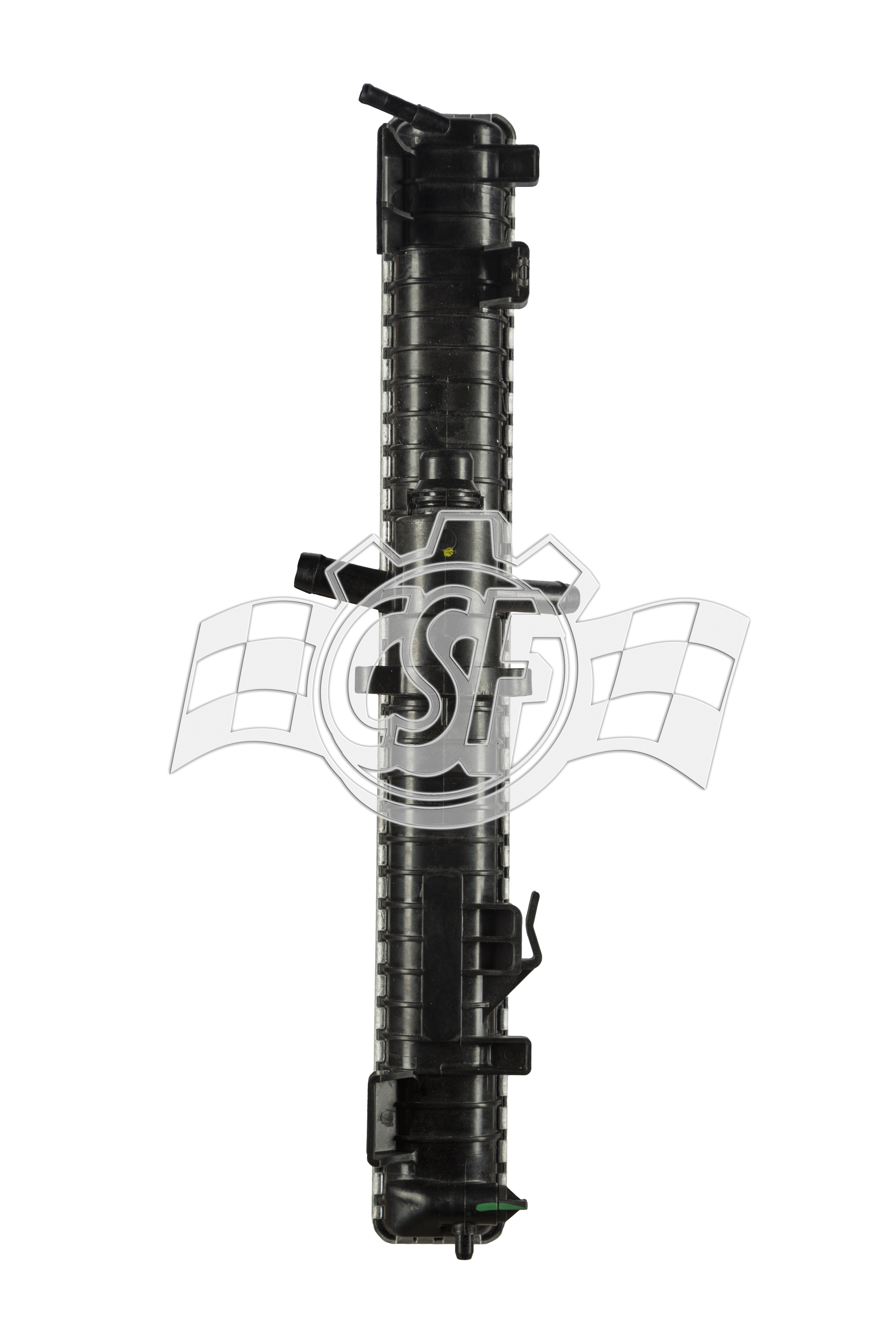

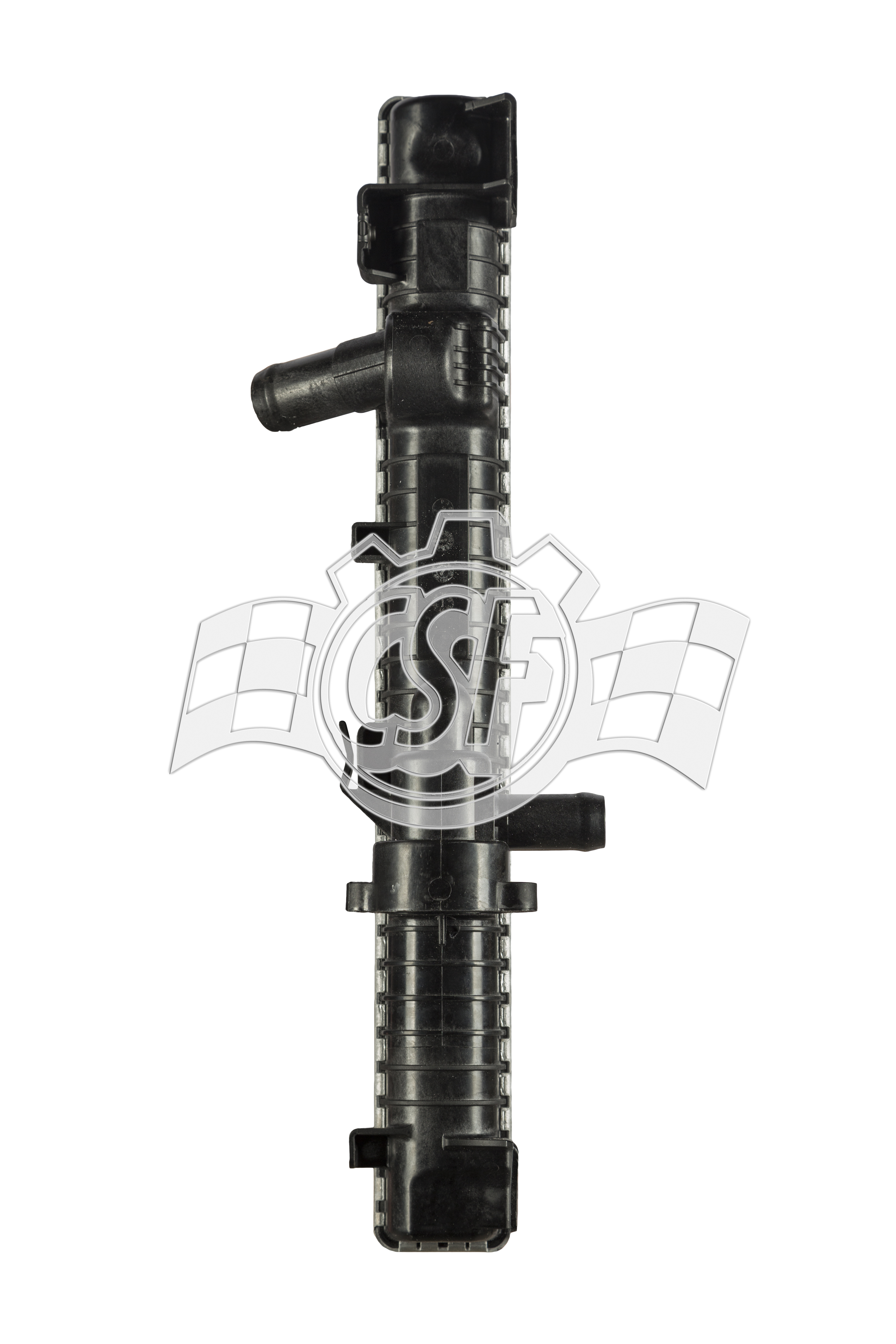

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 Left (in)
Box Height (in): 7 13/16
Box Length (in): 48 3/4
Box Weight (lbs): 25
Box Width (in): 24 3/4

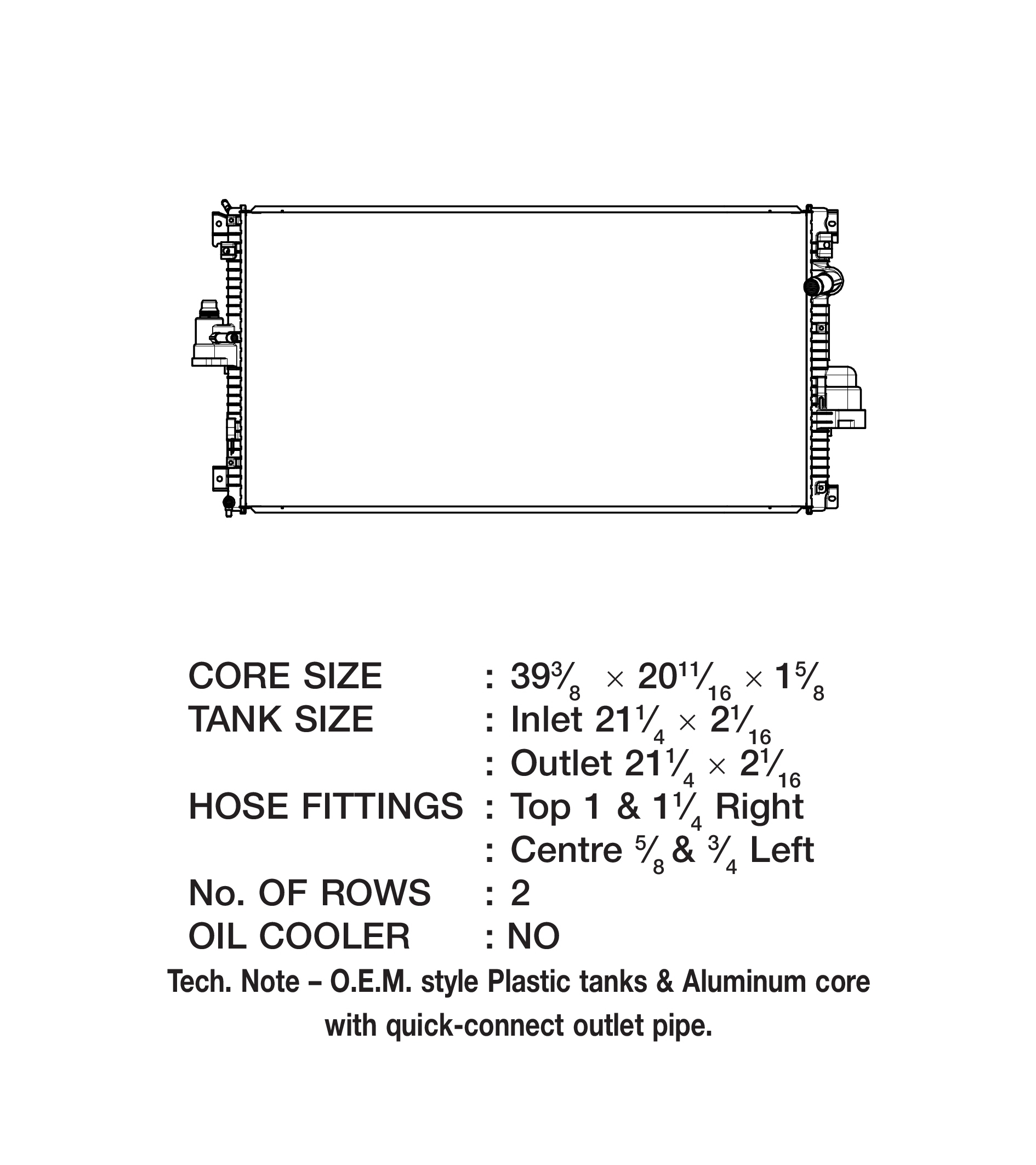

Core Length (in): 39 3/8 (in)
Core Material: Aluminum
Core Thickness (in): 1 5/8 (in)
Core Width (in): 20 11/16 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 21 3/8
Inlet Width (in): 2 1/8
No. Of Rows: 2
Outlet Length (in): 21 3/8
Outlet Width (in): 2 1/8
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. Upgraded Heavy Duty Core. 2 Row core to OEM 1 Row core
Top Hose Fitting (in): 1 1/4 Right (in)
Make Model Qualifiers Year
Ford F-250 Super Duty
  • Position: N/A
  • 6.7L V8 6651cc 406ci
  • Turbocharged
  • DIESEL
 2011-2016
Ford F-350 Super Duty
  • Position: N/A
  • 6.7L V8 6651cc 406ci
  • Turbocharged
  • DIESEL
 2011-2016
Ford F-450 Super Duty
  • Position: N/A
  • 6.7L V8 6651cc 406ci
  • Turbocharged
  • DIESEL
 2011-2016
Ford F-550 Super Duty
  • Position: N/A
  • 6.7L V8 6651cc 406ci
  • Turbocharged
  • DIESEL
 2011-2016

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
13339DPI
8013339APDI
BC3Z 8005 DOEM
BC3Z 8005 LOEM
FO3010350Partslink
