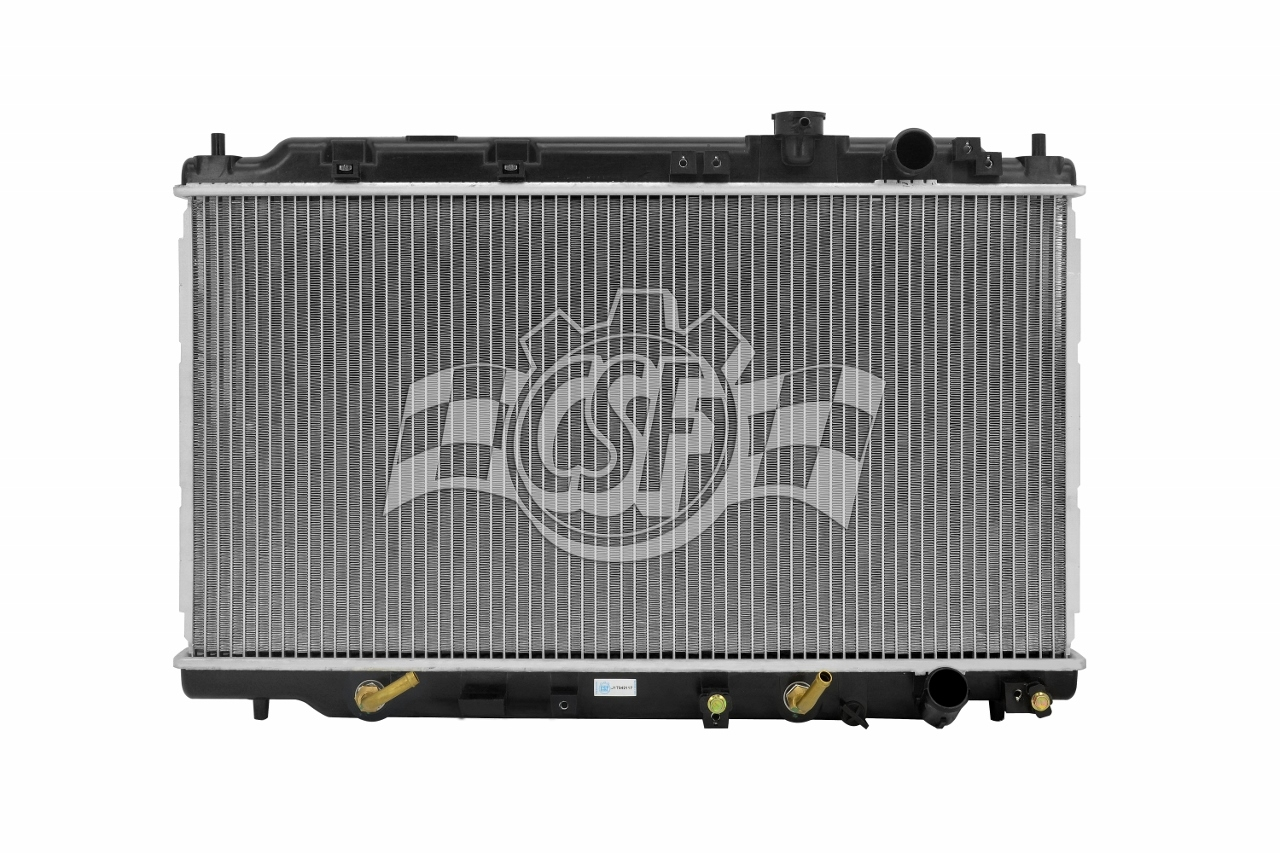

3320Radiator
1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 1/4 Right (in)
Box Height (in): 5 11/16
Box Length (in): 29 1/16
Box Weight (lbs): 8
Box Width (in): 19 13/16

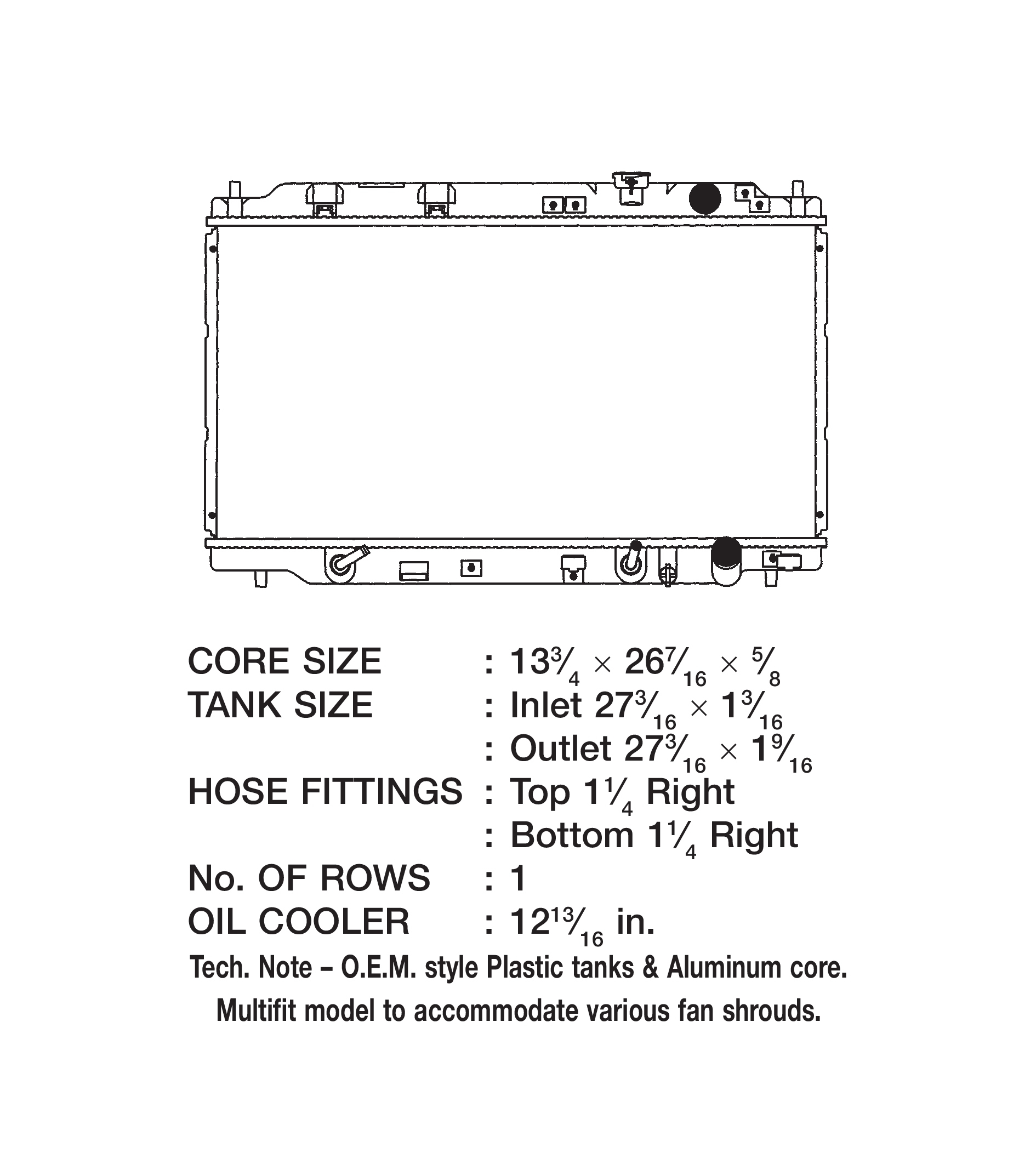

Core Length (in): 13 3/4 (in)
Core Material: Aluminum
Core Thickness (in): 5/8 (in)
Core Width (in): 26 5/16 (in)
Cross-flow/ Down-flow: Down Flow
Csf Cap Number: 4514
Hazardous Material: No
Inlet Length (in): 26 15/16
Inlet Width (in): 1 5/16
No. Of Rows: 1
Oil Cooler (in): 12 13/16 (high-effeciency Concentric Type)
Outlet Length (in): 26 15/16
Outlet Width (in): 1 3/4
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;Multifit model to accommodate various fan shrouds.
Top Hose Fitting (in): 1 1/4 Right (in)
Make Model Qualifiers Year
Acura Integra
  • Position: N/A
  • 1.8L L4 1834cc
 1994-2001
Acura Integra
  • Position: N/A
  • 1.8L L4 1797cc
 1994-2001

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
1568DPI
1568TYC
1741DPI
1742DPI
19010-P72-A03OEM
19010-P72-A53OEM
19010-P73-013OEM
19010-P75-A53OEM
221-3211Denso
221-3212Denso
8011568APDI
8011741APDI
8011742APDI
AC3010104Partslink
AC3010105Partslink
CU1741SPI
CU1742SPI
