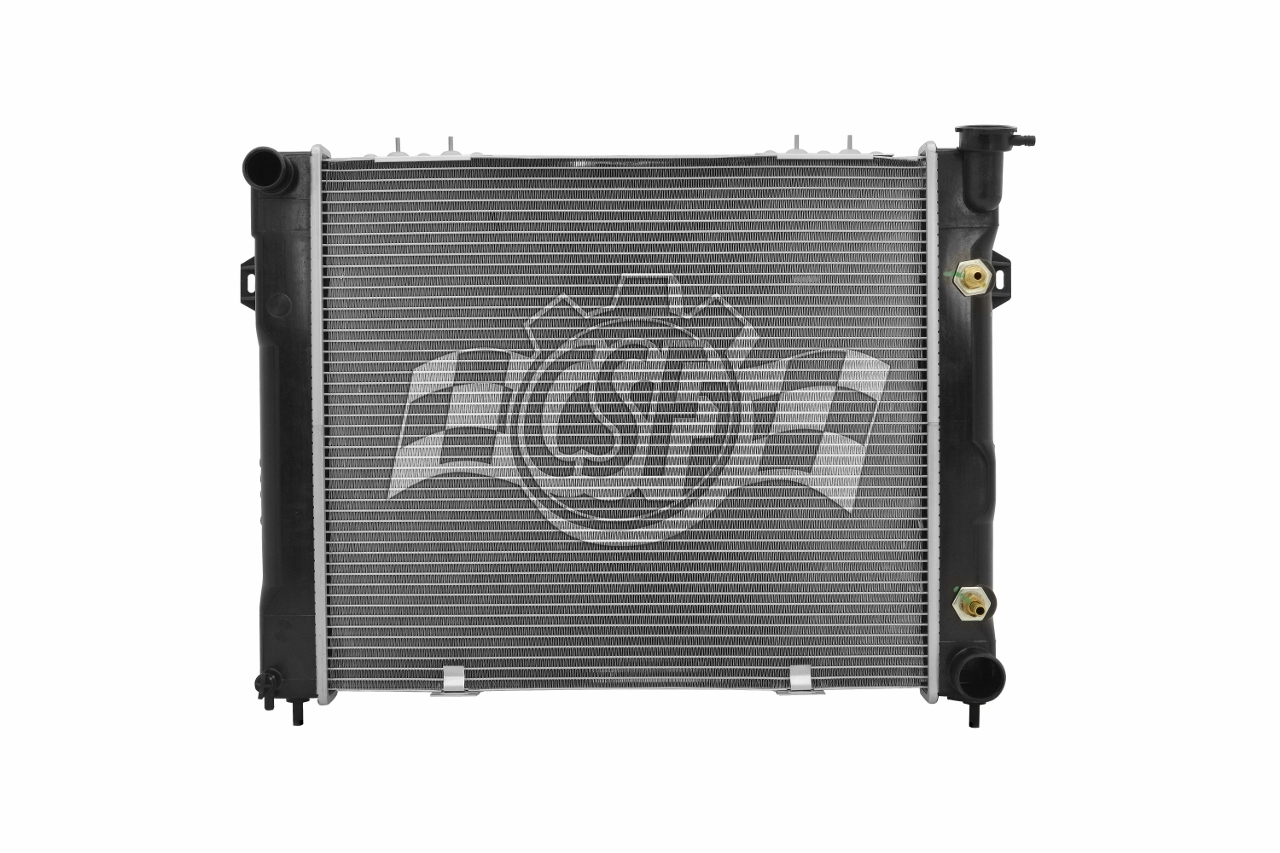

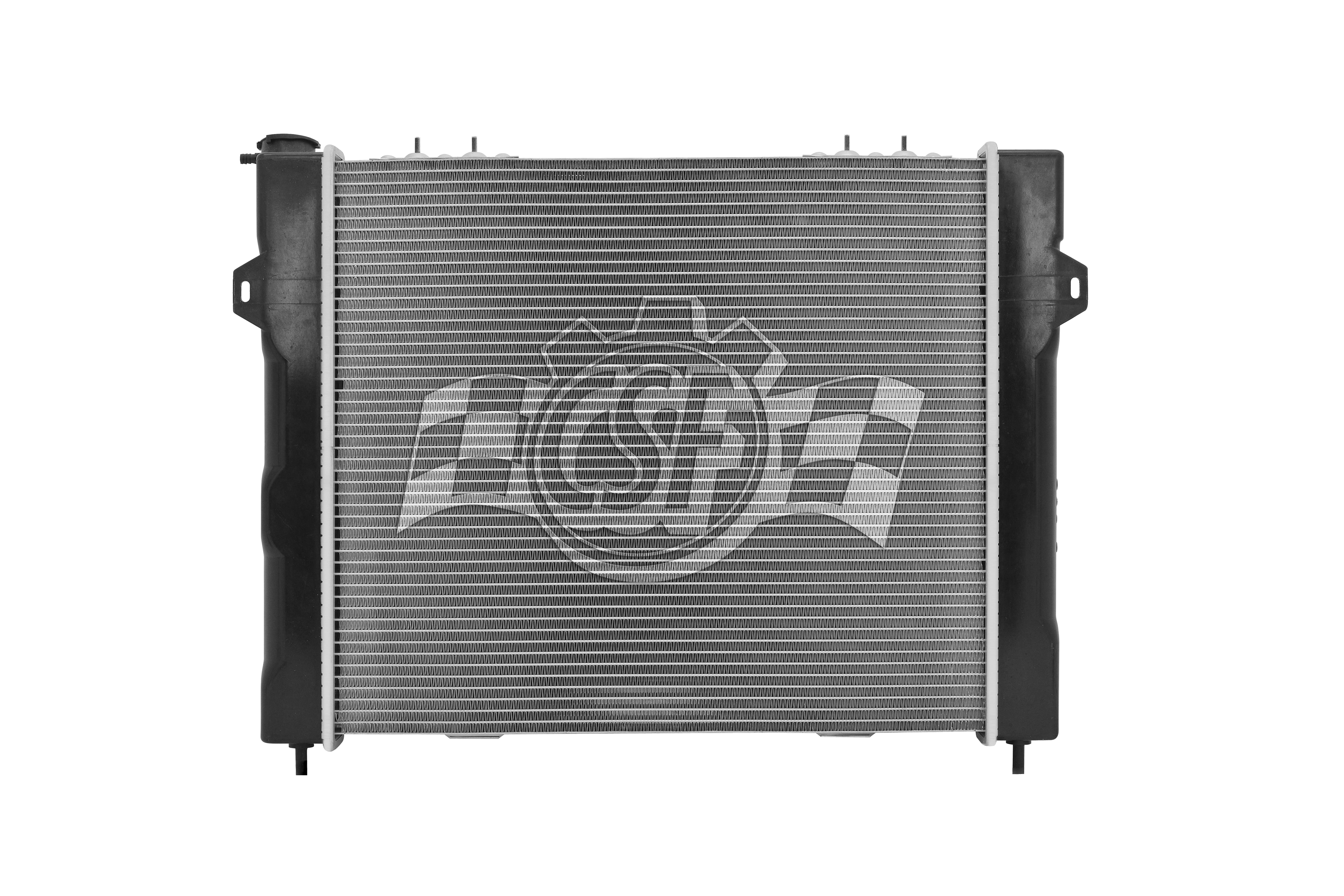

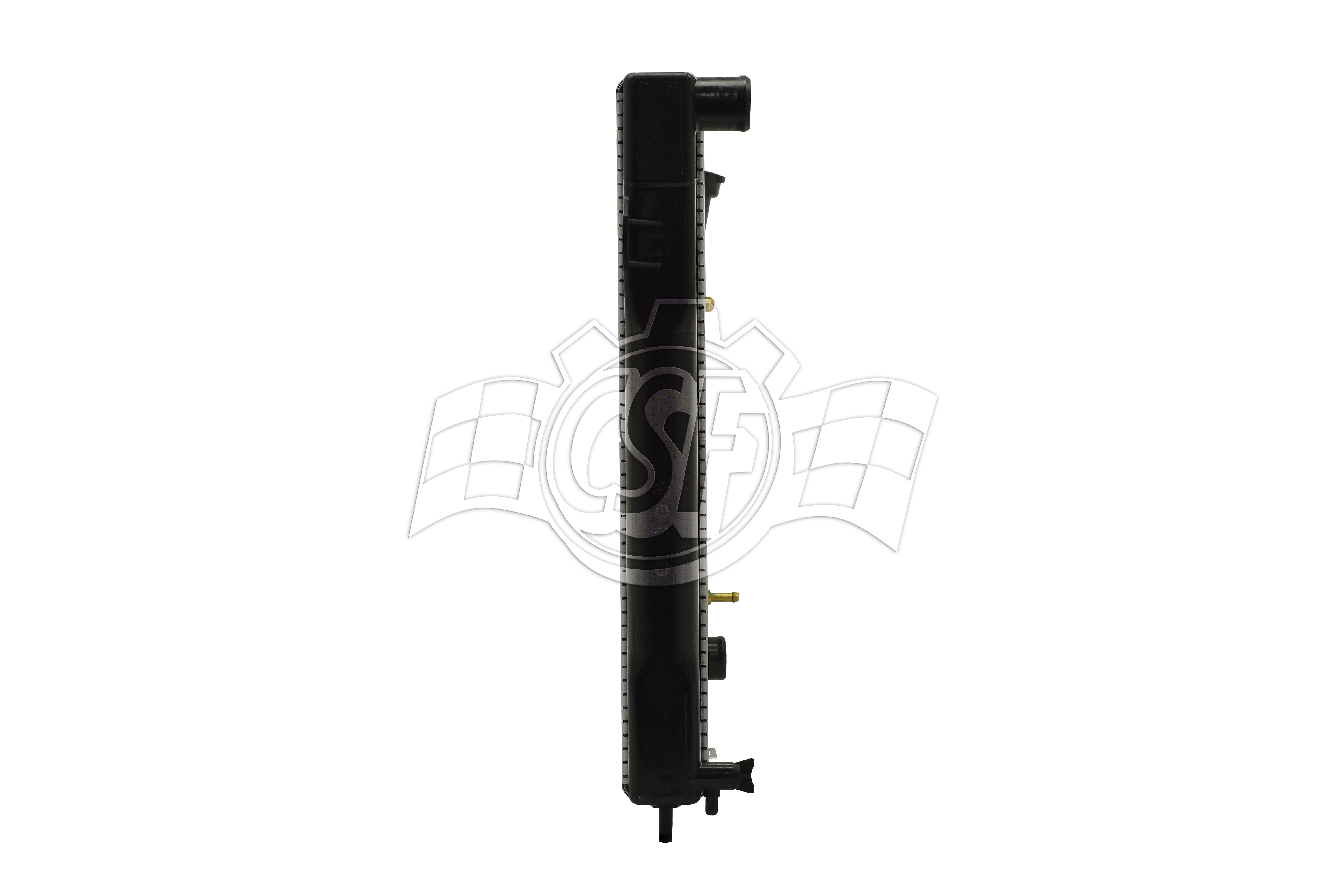

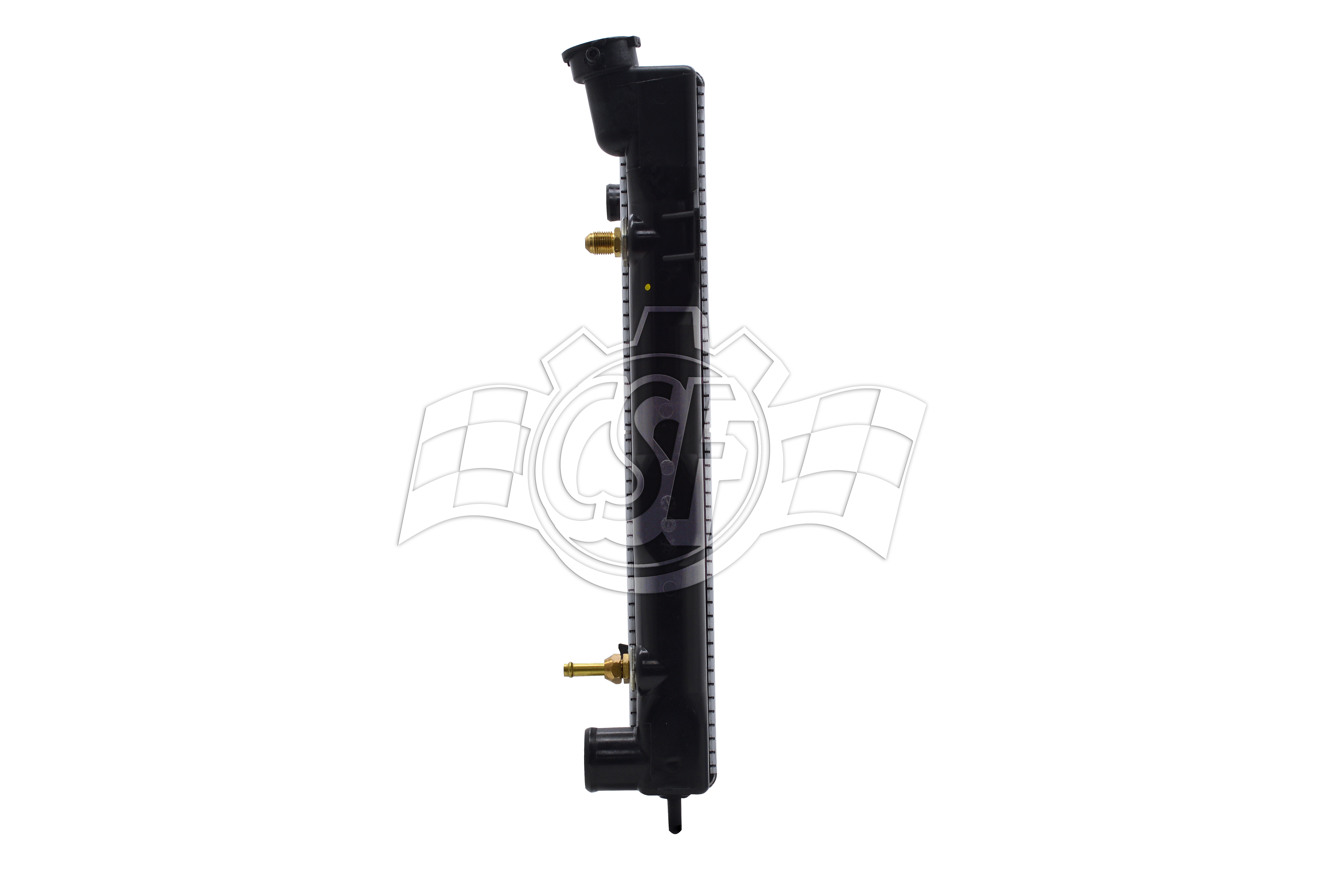

3249Radiator
1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 3/4 Right (in)
Box Height (in): 5 4/16
Box Length (in): 31 1/16
Box Weight (lbs): 14
Box Width (in): 24 1/8

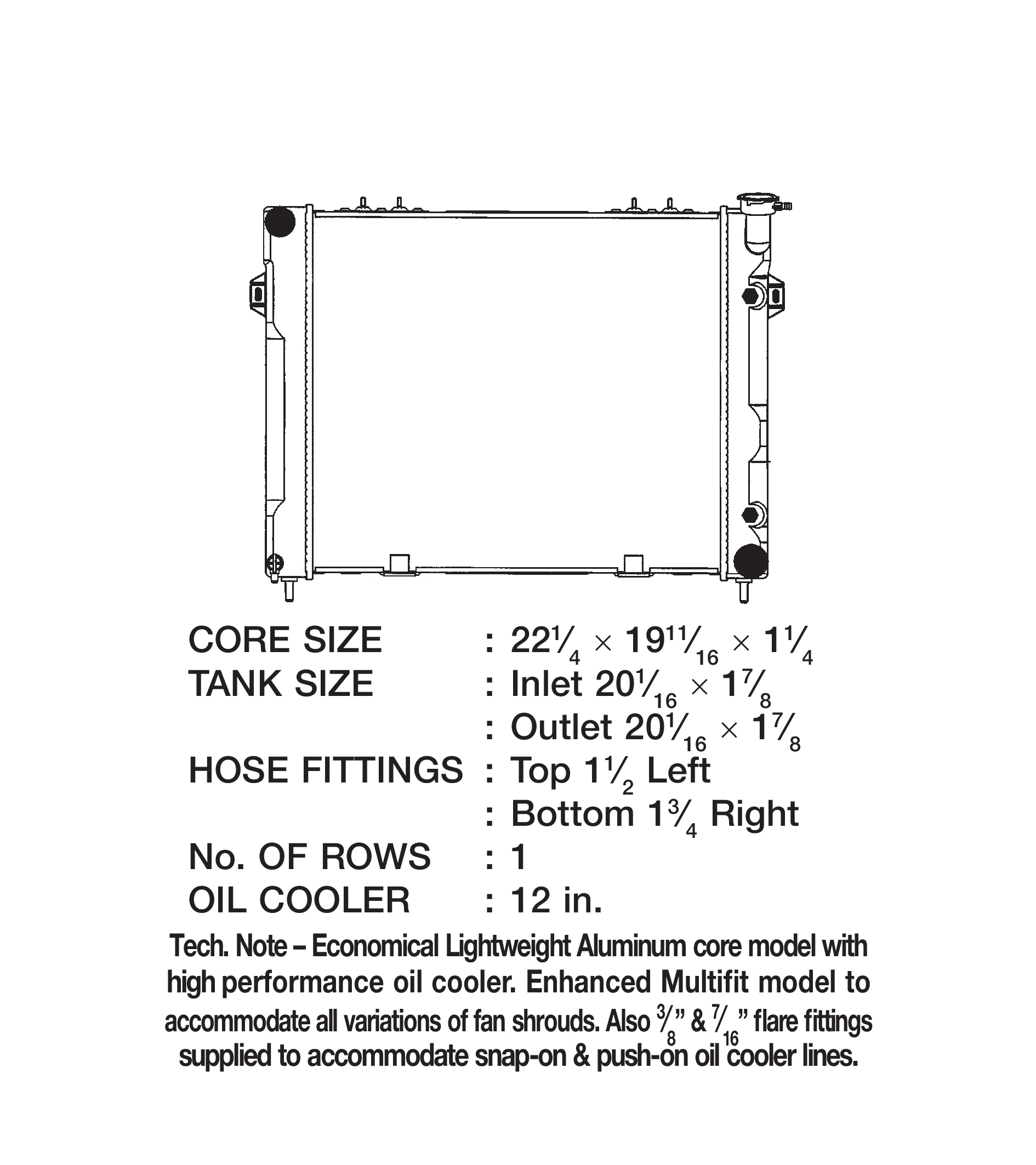

Core Length (in): 22 1/4 (in)
Core Material: Aluminum
Core Thickness (in): 1 1/4 (in)
Core Width (in): 19 5/8 (in)
Cross-flow/ Down-flow: Cross Flow
Csf Cap Number: 4515
Hazardous Material: No
Inlet Length (in): 20 5/8
Inlet Width (in): 2
No. Of Rows: 1
Oil Cooler (in): 12 (high-effeciency Concentric Type)
Outlet Length (in): 20 5/8
Outlet Width (in): 2
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: Economical Lightweight Aluminum core model with high performance oil cooler; Enhanced Multifit model to accommodate all variations of fan shrouds; Also 3/8" & 7/16" flare fittings supplied to accommodate snap-on & push-on oil cooler lines.
Top Hose Fitting (in): 1 1/2 Left (in)
Make Model Qualifiers Year
Jeep Grand Cherokee
  • Position: N/A
  • 5.2L V8 5211cc 318ci
 1993-1998
Jeep Grand Cherokee
  • Position: N/A
  • 5.9L V8 360ci
 1998
Jeep Grand Wagoneer
  • Position: N/A
  • 5.2L V8 5211cc 318ci
 1993

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
1394DPI
2206DPI
2230DPI
4734104OEM
52006644OEM
52027798OEM
52028098OEM
52079598OEM
8011394APDI
8012206APDI
CH3010209Partslink
CU1394SPI
CU2206SPI
