3246Radiator
1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly

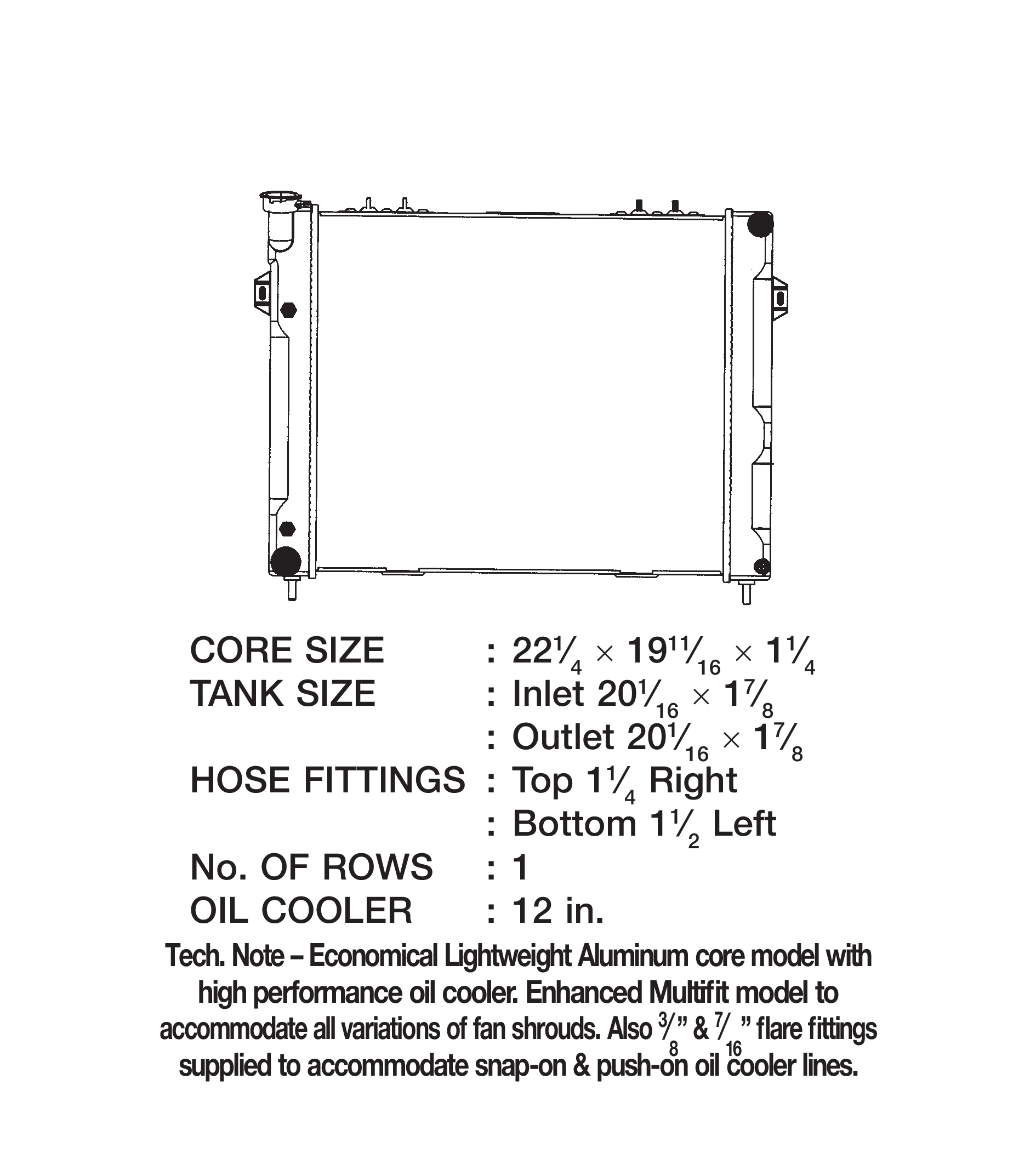

Bottom Hose Fitting (in): 1 1/2 Left (in)
Box Height (in): 5 11/16
Box Length (in): 30 5/8
Box Weight (lbs): 14
Box Width (in): 24 1/8
Core Length (in): 22 1/4 (in)
Core Material: Aluminum
Core Thickness (in): 1 1/4 (in)
Core Width (in): 19 5/8 (in)
Cross-flow/ Down-flow: Cross Flow
Csf Cap Number: 4515
Hazardous Material: No
Inlet Length (in): 20 1/4
Inlet Width (in): 2
No. Of Rows: 1
Oil Cooler (in): 12 (high-effeciency Concentric Type)
Outlet Length (in): 20 1/4
Outlet Width (in): 2
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: Economical Lightweight Aluminum core model with high performance oil cooler; Enhanced Multifit model to accommodate all variations of fan shrouds; Also 3/8" & 7/16" flare fittings supplied to accommodate snap-on & push-on oil cooler lines.
Top Hose Fitting (in): 1 1/4 Right (in)
Make Model Qualifiers Year
Jeep Grand Cherokee
  • Position: N/A
  • 4.0L L6 242ci
 1993-1998

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
1395DPI
1395TYC
1396DPI
2182DPI
2231DPI
2232DPI
4734103OEM
4734104OEM
4734105OEM
52005160OEM
52005166OEM
52005169OEM
52005172OEM
52027798OEM
52028379OEM
52079597OEM
8011396APDI
8012182APDI
CH3010201Partslink
CH3010202Partslink
CH3010206Partslink
CU1396SPI
CU2182SPI
