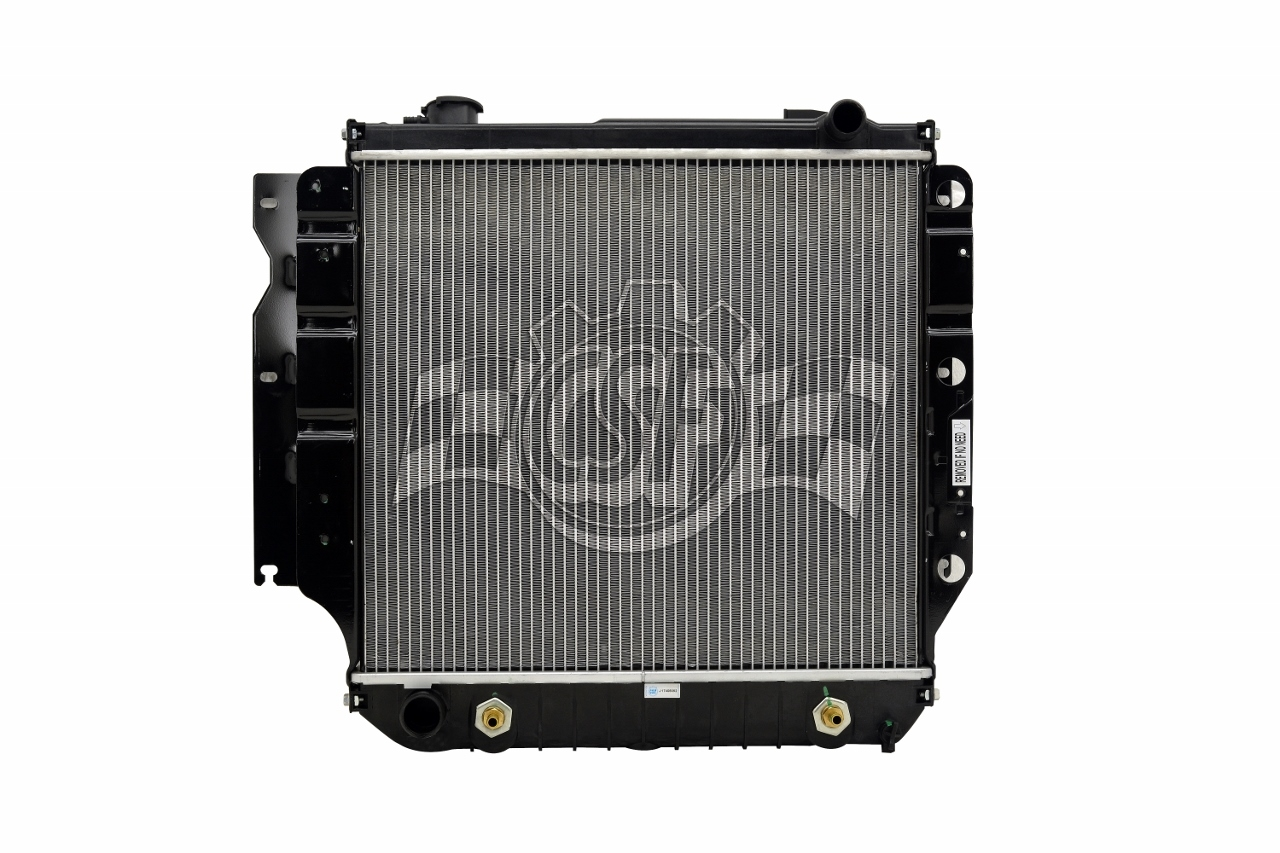

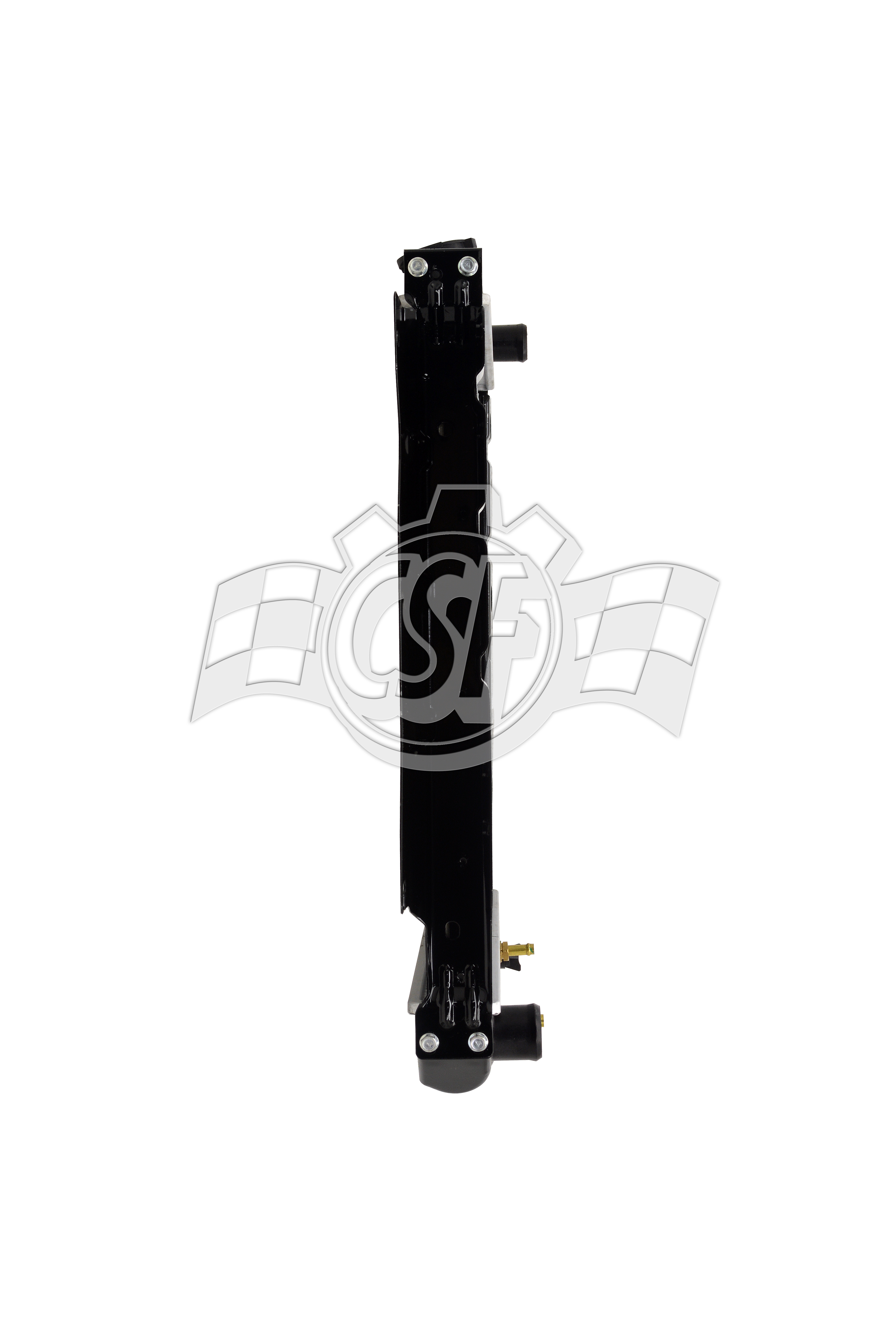

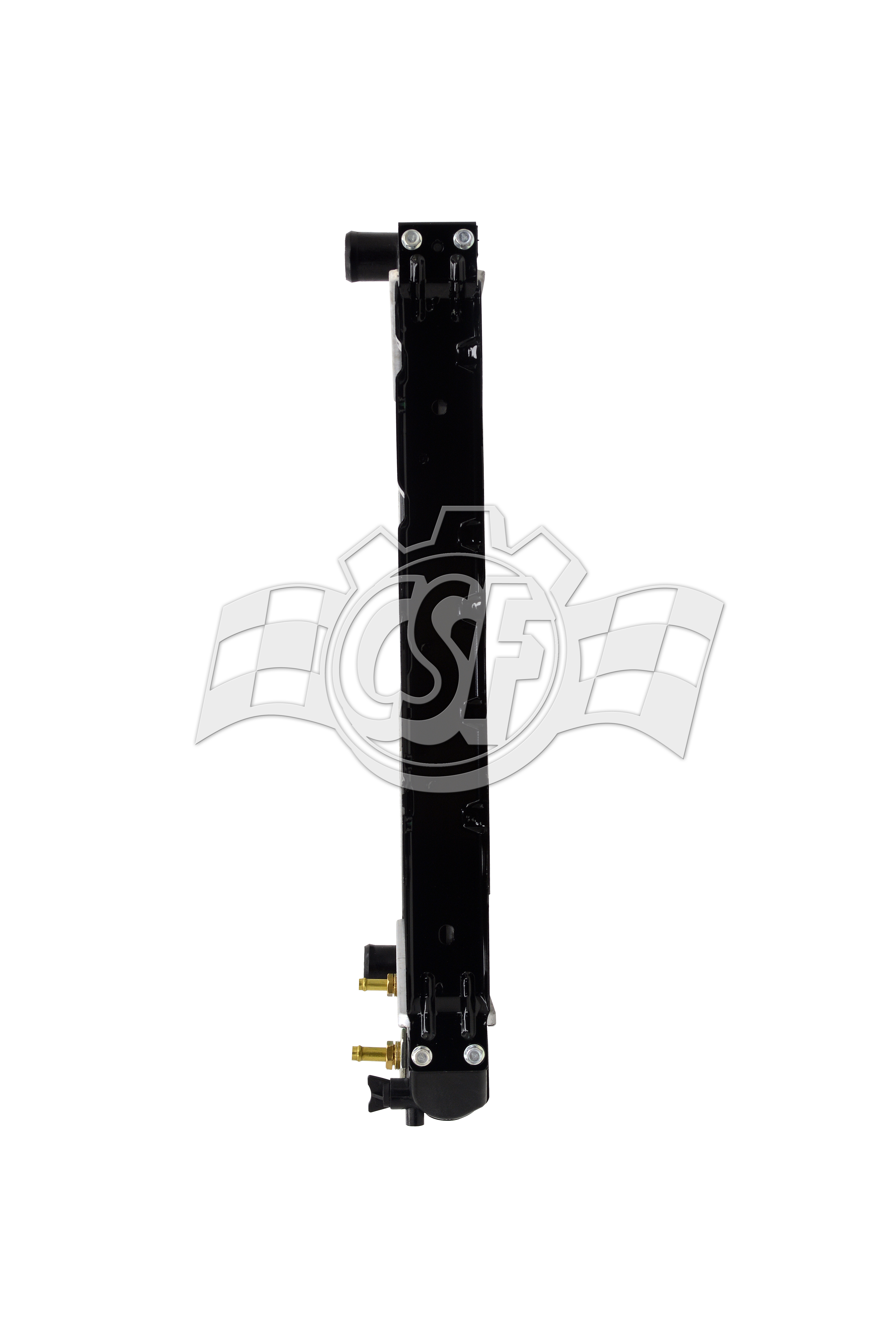

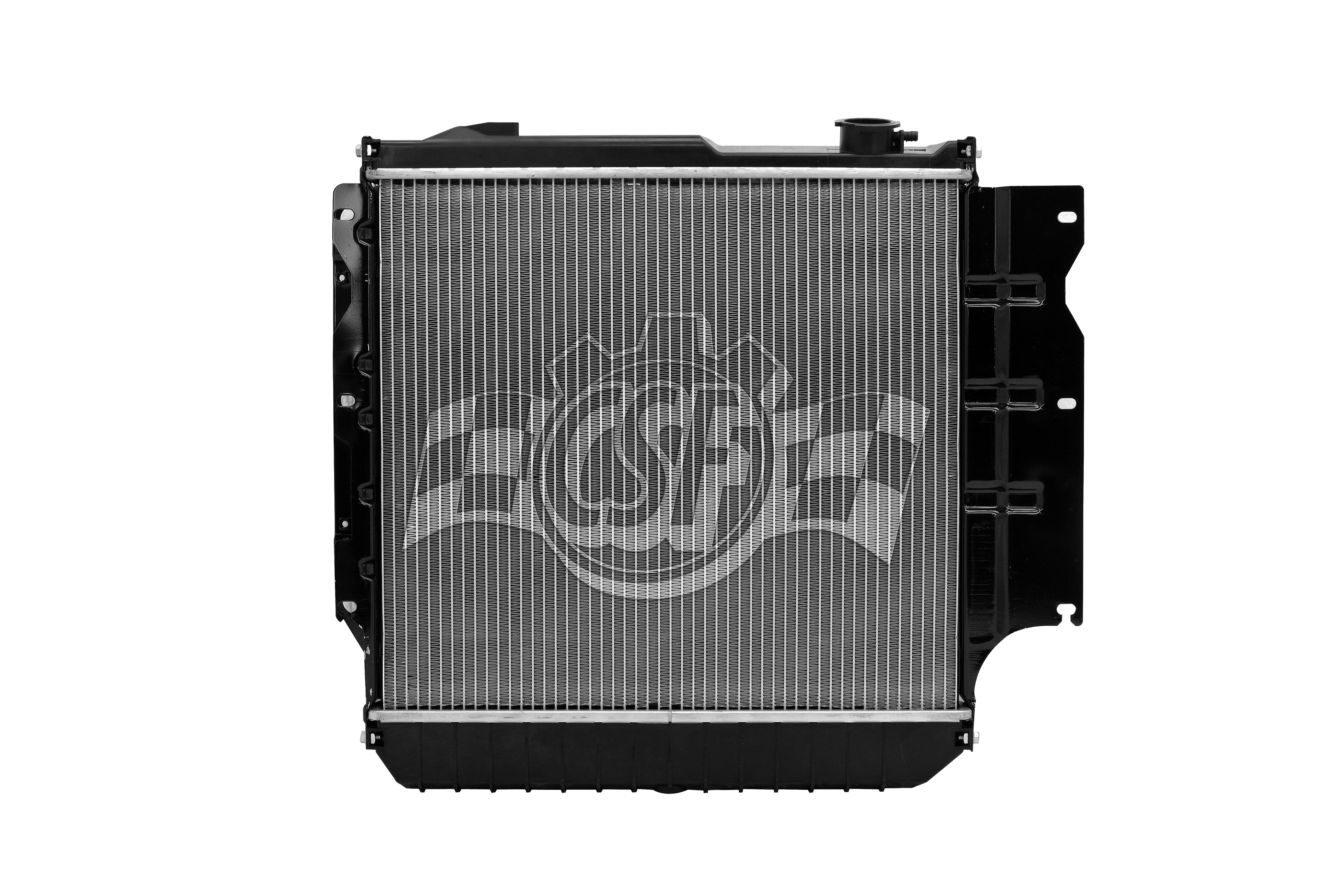

3244Radiator
1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 1/2 Left (in)
Box Height (in): 5 1/16
Box Length (in): 24 15/16
Box Weight (lbs): 14
Box Width (in): 27 5/16
Core Length (in): 18 1/8 (in)
Core Material: Aluminum
Core Thickness (in): 1 1/4 (in)
Core Width (in): 19 5/8 (in)
Cross-flow/ Down-flow: Down Flow
Csf Cap Number: 4515
Hazardous Material: No
Inlet Length (in): 20 3/16
Inlet Width (in): 1 15/16
No. Of Rows: 1
Oil Cooler (in): 12 (high-efficiency Plate Type)
Outlet Length (in): 20 3/16
Outlet Width (in): 1 15/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core Multifit model;Supplied with snap-on & push-on oil cooler fittings & special removable bracket;Manufactured with steel crimps to strengthen radiator by 40% over O.E.
Top Hose Fitting (in): 1 1/4 Right (in)
Make Model Qualifiers Year
Jeep TJ
  • Position: N/A
  • 4.0L L6 242ci
 1997-2006
Jeep TJ
  • Position: N/A
  • 2.5L L4 150ci
 1997-2002
Jeep TJ
  • Position: N/A
  • 2.4L L4 148ci
 2003, 2005-2006
Jeep Wrangler
  • Position: N/A
  • 2.4L L4 148ci
 2005-2006
Jeep Wrangler
  • Position: N/A
  • 2.5L L4 150ci
 1987-1995, 1997-2002
Jeep Wrangler
  • Position: N/A
  • 4.0L L6 242ci
 1991-1995, 1997-2006

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
1015DPI
1682DPI
2101DPI
2102DPI
2760DPI
52004781OEM
52006122OEM
52006123OEM
52006124OEM
52006125OEM
52006126OEM
52006127OEM
52006128OEM
52028112OEM
52028114OEM
52028120OEM
52028123OEM
52029113OEM
52029160OEM
52040229OEM
52040285OEM
52040286OEM
52040287OEM
52040288OEM
52080180OEM
52080181OEM
52080183 ABOEM
8011682APDI
8012101APDI
8952040229OEM
8952040285OEM
8952040286OEM
8952040287OEM
8952040288OEM
CH3010211Partslink
CH3010213Partslink
CH3010215Partslink
CH3010219Partslink
CH3010220Partslink
CH3010221Partslink
CH3010225Partslink
CU1015SPI
CU2101SPI
