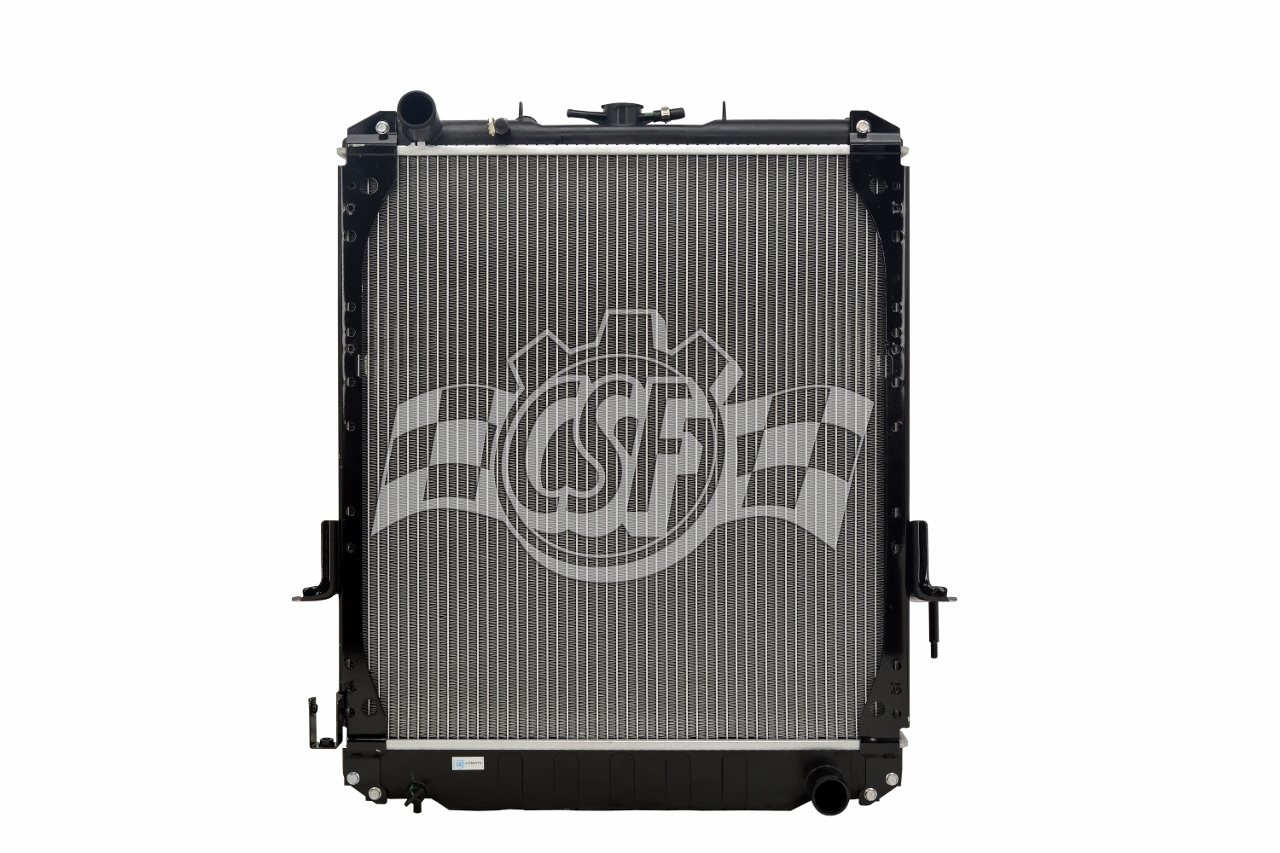

3242Radiator
2 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 1/2 Right (in)
Box Height (in): 7 7/16
Box Length (in): 30 1/4
Box Weight (lbs): 21
Box Width (in): 28 11/16

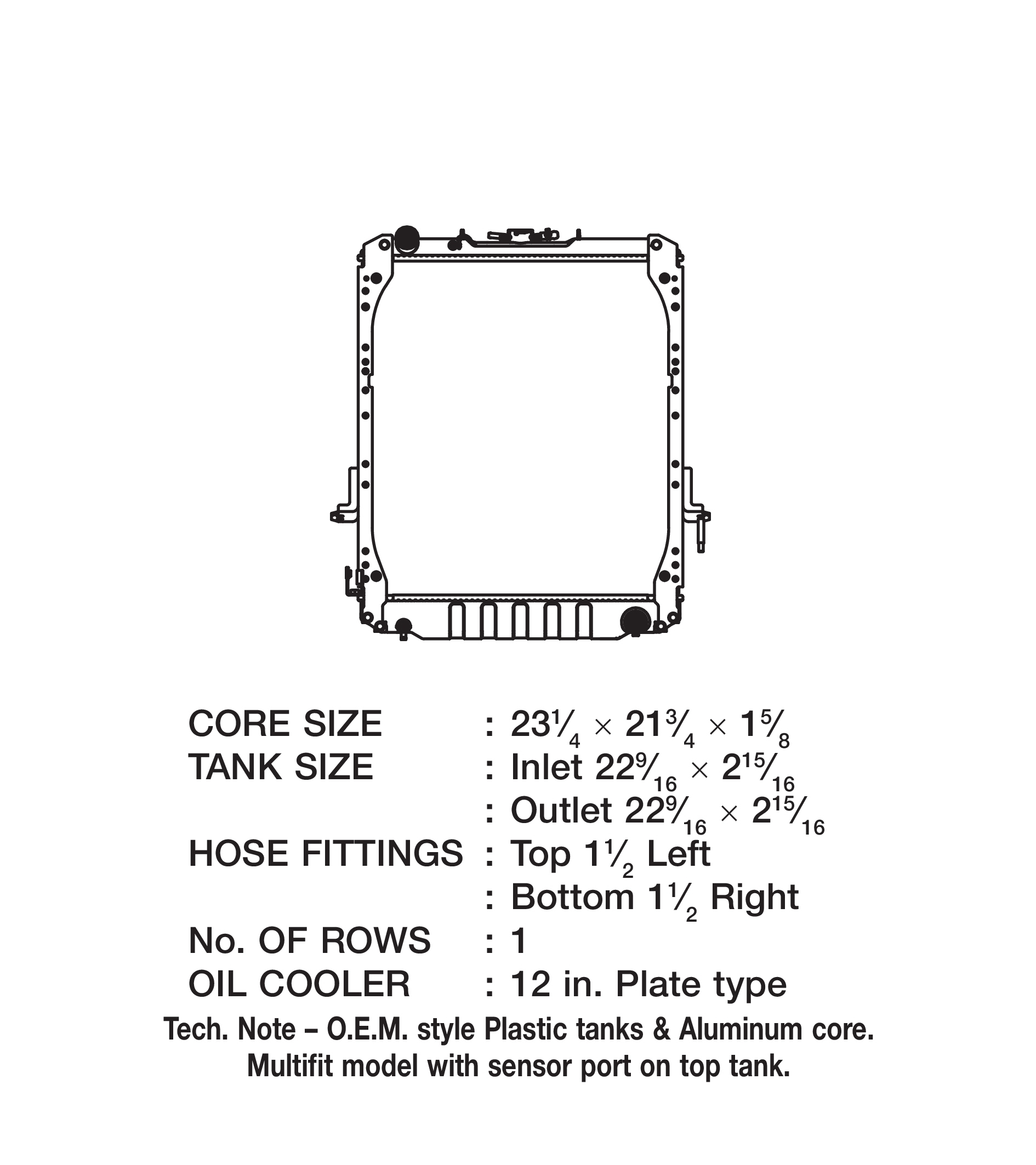

Core Length (in): 23 1/4 (in)
Core Material: Aluminum
Core Thickness (in): 1 5/8 (in)
Core Width (in): 21 9/16 (in)
Cross-flow/ Down-flow: Down Flow
Csf Cap Number: 4503
Hazardous Material: No
Inlet Length (in): 22 1/8
Inlet Width (in): 1 15/16
No. Of Rows: 2
Oil Cooler (in): 12 (high-efficiency Plate Type)
Outlet Length (in): 22 1/8
Outlet Width (in): 1 15/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;Superior Engineered Multifit model with Sensor Port on top tank
Top Hose Fitting (in): 1 1/2 Left (in)
Make Model Qualifiers Year
Chevrolet W3500 Tiltmaster
  • Position: N/A
  • 5.7L V8 350ci
  • GAS
 1996-2003
Chevrolet W3500 Tiltmaster
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • GAS
 2004-2008
Chevrolet W3500 Tiltmaster
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2003, 2009
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 5.7L V8 350ci
  • GAS
 1998-2003
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • GAS
 2003-2008, 2010
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2009
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 5.7L V8 350ci
 1996-1997
GMC W3500 Forward
  • Position: N/A
  • 5.7L V8 350ci
  • GAS
 1996-2003
GMC W3500 Forward
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • GAS
 2004-2008
GMC W4500 Forward
  • Position: N/A
  • 5.7L V8 350ci
  • GAS
 1998-2002
GMC W4500 Forward
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • GAS
 2003-2008, 2010
GMC W4500 Forward
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2009
Isuzu NPR
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2009-2015
Isuzu NPR
  • Position: N/A
  • 5.7L V8 350ci
  • GAS
 1996-2002
Isuzu NPR
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • GAS
 2003-2008
Isuzu NPR-HD
  • Position: N/A
  • 5.7L V8 350ci
  • GAS
 1999-2002
Isuzu NPR-HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • GAS
 2003-2008
Isuzu NPR-HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2009, 2012-2015

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
2001-0702SPI
8-97143-373-1OEM
8-97179-328-2OEM
8-97214-669-0OEM
8-97222-913-1OEM
8-97311-558-0OEM
8-97311-558-1OEM
97143373OEM
97179328OEM
97214669OEM
97222913OEM
97311558OEM
