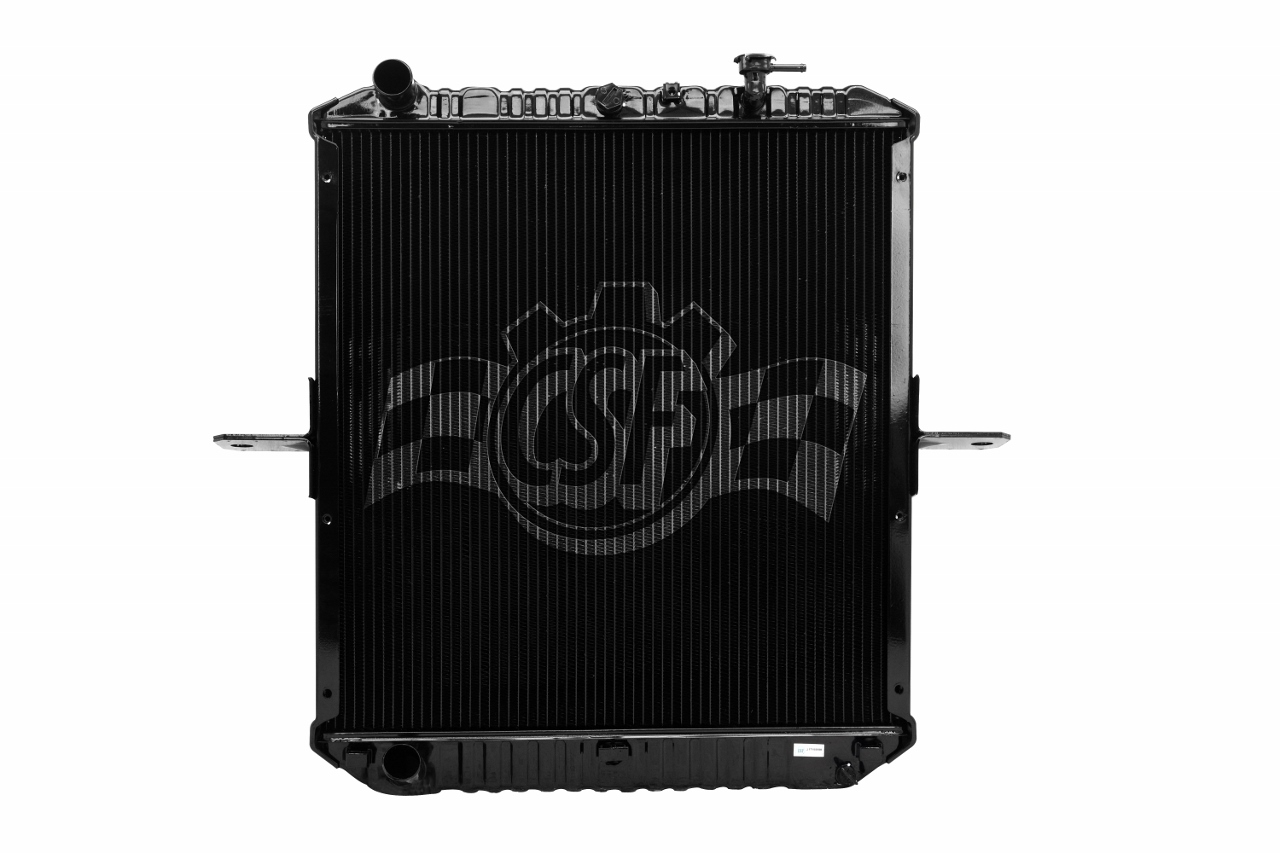

3219Radiator
3 Row All Metal

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Copper-Brass Construction
  • Easy to recore & repair
  • No risk for coolant contamination and damage to sensitive seals, water pump & thermostat
  • OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability
  • Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • Side Channels - Coated Steel for Strength & Durability
  • Reinforced Inlet & Outlet Connections with "Thru Pipe Design"
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators
  • All components are installed, torqued & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 1/2 Left (in)
Box Height (in): 8
Box Length (in): 35
Box Weight (lbs): 32
Box Width (in): 33

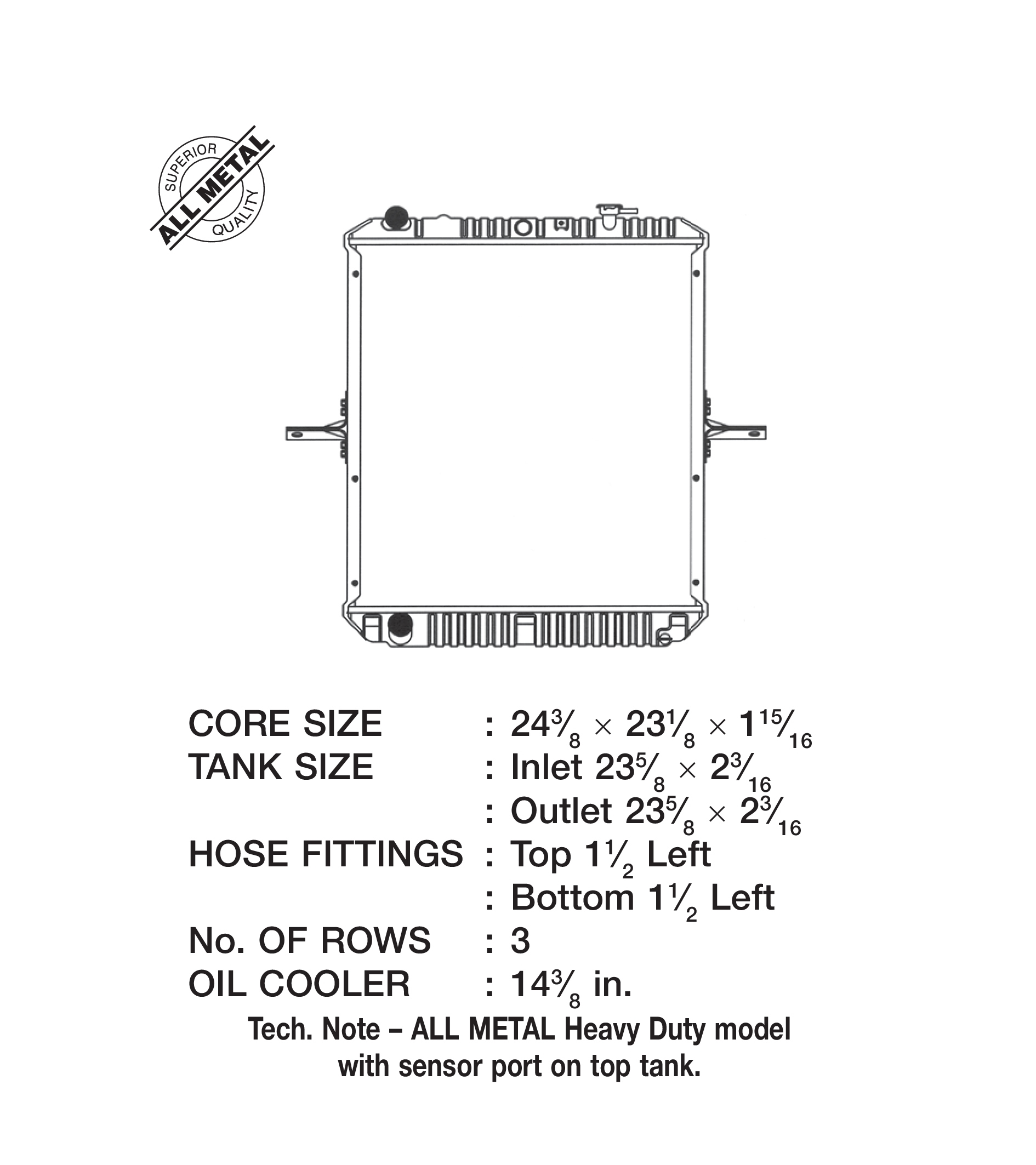

Core Length (in): 24 7/16 (in)
Core Material: Copper
Core Thickness (in): 1 11/16 (in)
Core Width (in): 23 9/16 (in)
Cross-flow/ Down-flow: Down Flow
Csf Cap Number: 4503
Hazardous Material: No
Inlet Length (in): 23 3/4
Inlet Width (in): 2 3/16
No. Of Rows: 3
Oil Cooler (in): 14 3/8 (high-effeciency Concentric Type)
Outlet Length (in): 23 3/4
Outlet Width (in): 2 3/16
Radiator Cap Supplied: No
Tank Material: Brass
Tech Note: ALL METAL Heavy Duty model with sensor port on top tank.
Top Hose Fitting (in): 1 1/2 Left (in)
Make Model Qualifiers Year
Chevrolet W3500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Chevrolet W3500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2008-2009
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
Chevrolet W5500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Chevrolet W5500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
Chevrolet W5500HD Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Chevrolet W5500HD Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2008-2009
GMC W3500 Forward
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
GMC W3500 Forward
  • Position: N/A
  • 5.2L L4 317ci
 2008
GMC W4500 Forward
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
GMC W4500 Forward
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
GMC W5500 Forward
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
GMC W5500 Forward
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
GMC W5500HD Forward
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
GMC W5500HD Forward
  • Position: N/A
  • 5.2L L4 317ci
 2008-2009
Isuzu NPR
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Isuzu NPR
  • Position: N/A
  • 5.2L L4 317ci
 2008
Isuzu NPR-HD
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Isuzu NPR-HD
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
Isuzu NQR
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Isuzu NQR
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
Isuzu NRR
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Isuzu NRR
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
8-97333-140-0OEM
8-97333-140-4OEM
8-97333-141-0OEM
97333140OEM
97333141OEM
