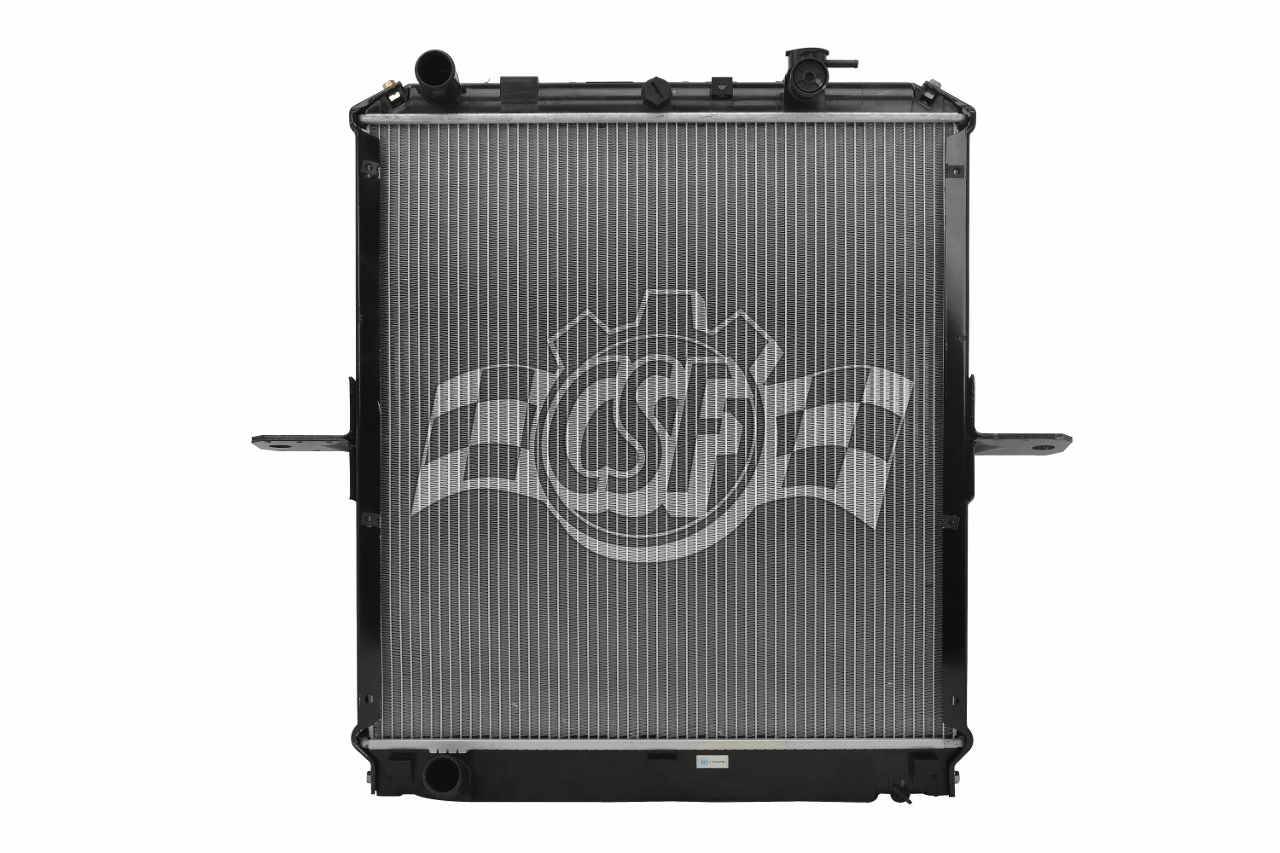

3209Radiator
1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turbulator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 1/2 Left (in)
Box Height (in): 7 7/16
Box Length (in): 31 5/8
Box Weight (lbs): 24
Box Width (in): 34 15/16

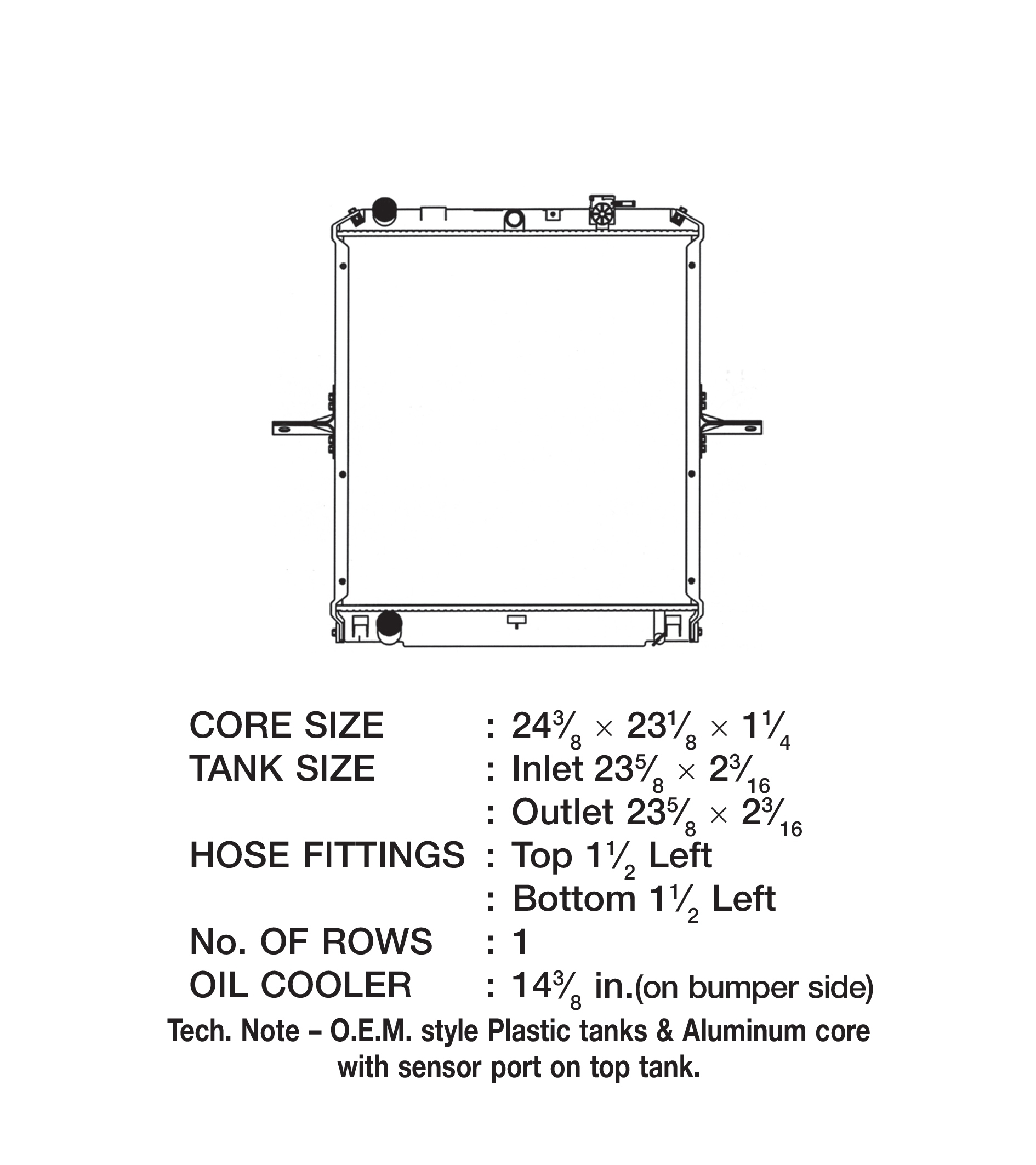

Core Length (in): 24 7/16 (in)
Core Material: Aluminum
Core Thickness (in): 1 1/4 (in)
Core Width (in): 23 1/8 (in)
Cross-flow/ Down-flow: Down Flow
Csf Cap Number: 4503
Hazardous Material: No
Inlet Length (in): 23 13/16
Inlet Width (in): 1 15/16
No. Of Rows: 1
Oil Cooler (in): 14 3/8 (high-efficiency Plate Type)
Outlet Length (in): 23 13/16
Outlet Width (in): 1 15/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;with sensor port on top tank.
Top Hose Fitting (in): 1 1/2 Left (in)
Make Model Qualifiers Year
Chevrolet W3500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Chevrolet W3500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2008-2009
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
Chevrolet W5500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Chevrolet W5500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
Chevrolet W5500HD Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Chevrolet W5500HD Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2008-2009
GMC W3500 Forward
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
GMC W3500 Forward
  • Position: N/A
  • 5.2L L4 317ci
 2008
GMC W4500 Forward
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
GMC W4500 Forward
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
GMC W5500 Forward
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
GMC W5500 Forward
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
GMC W5500HD Forward
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
GMC W5500HD Forward
  • Position: N/A
  • 5.2L L4 317ci
 2008-2009
Isuzu NPR
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Isuzu NPR
  • Position: N/A
  • 5.2L L4 317ci
 2008
Isuzu NPR-HD
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Isuzu NPR-HD
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
Isuzu NQR
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Isuzu NQR
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010
Isuzu NRR
  • Position: N/A
  • 5.2L L4 317ci
  • DIESEL
 2005-2007
Isuzu NRR
  • Position: N/A
  • 5.2L L4 317ci
 2008-2010

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
8-97333-140-0OEM
8-97333-140-4OEM
8-97333-141-0OEM
97333140OEM
97333141OEM
