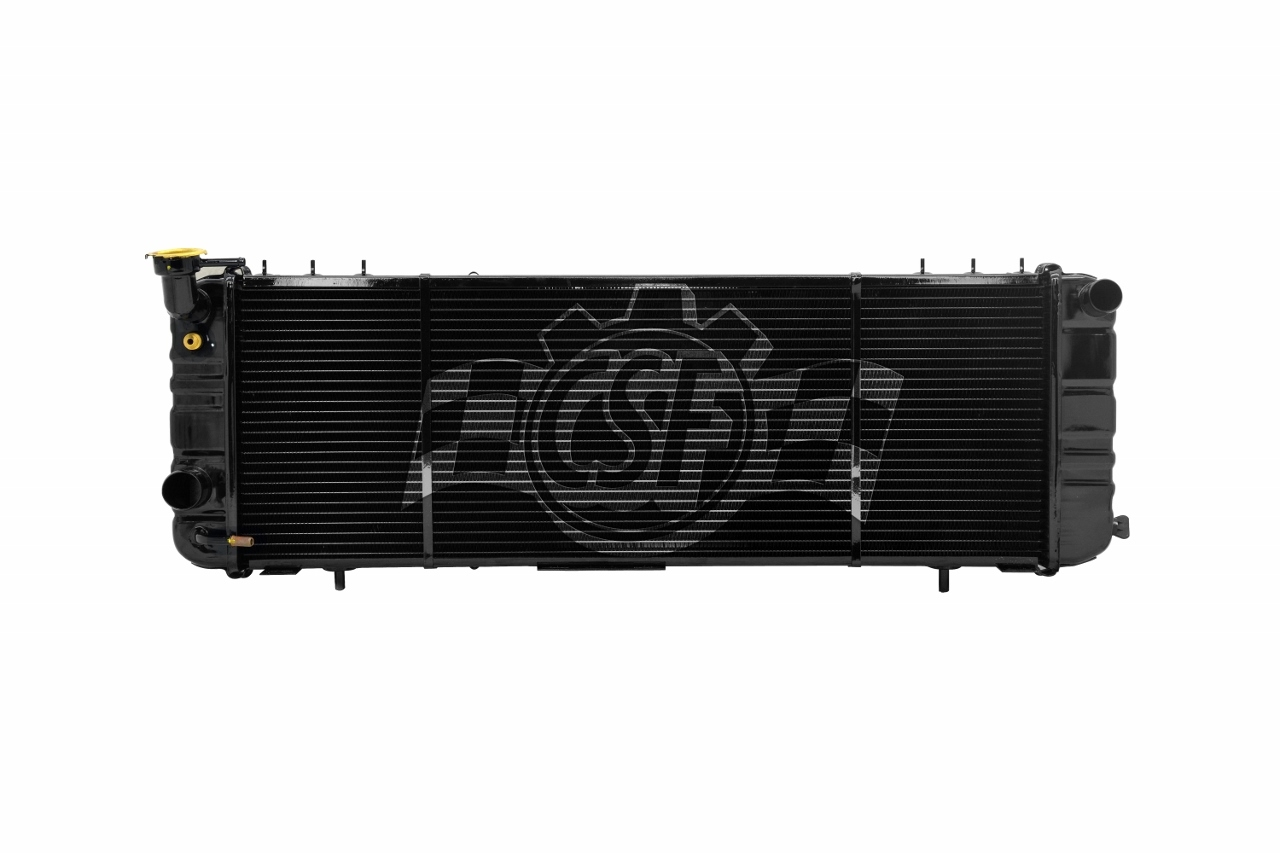

2671Radiator
3 Row All Metal Heavy Duty

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Copper-Brass Construction
  • Easy to recore & repair
  • No risk for coolant contamination and damage to sensitive seals, water pump & thermostat
  • OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability
  • Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • Side Channels - Coated Steel for Strength & Durability
  • Reinforced Inlet & Outlet Connections with "Thru Pipe Design"
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators
  • All components are installed, torqued & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 1/2 Left (in)
Box Height (in): 8 5/8
Box Length (in): 38 3/4
Box Weight (lbs): 19
Box Width (in): 16 1/16

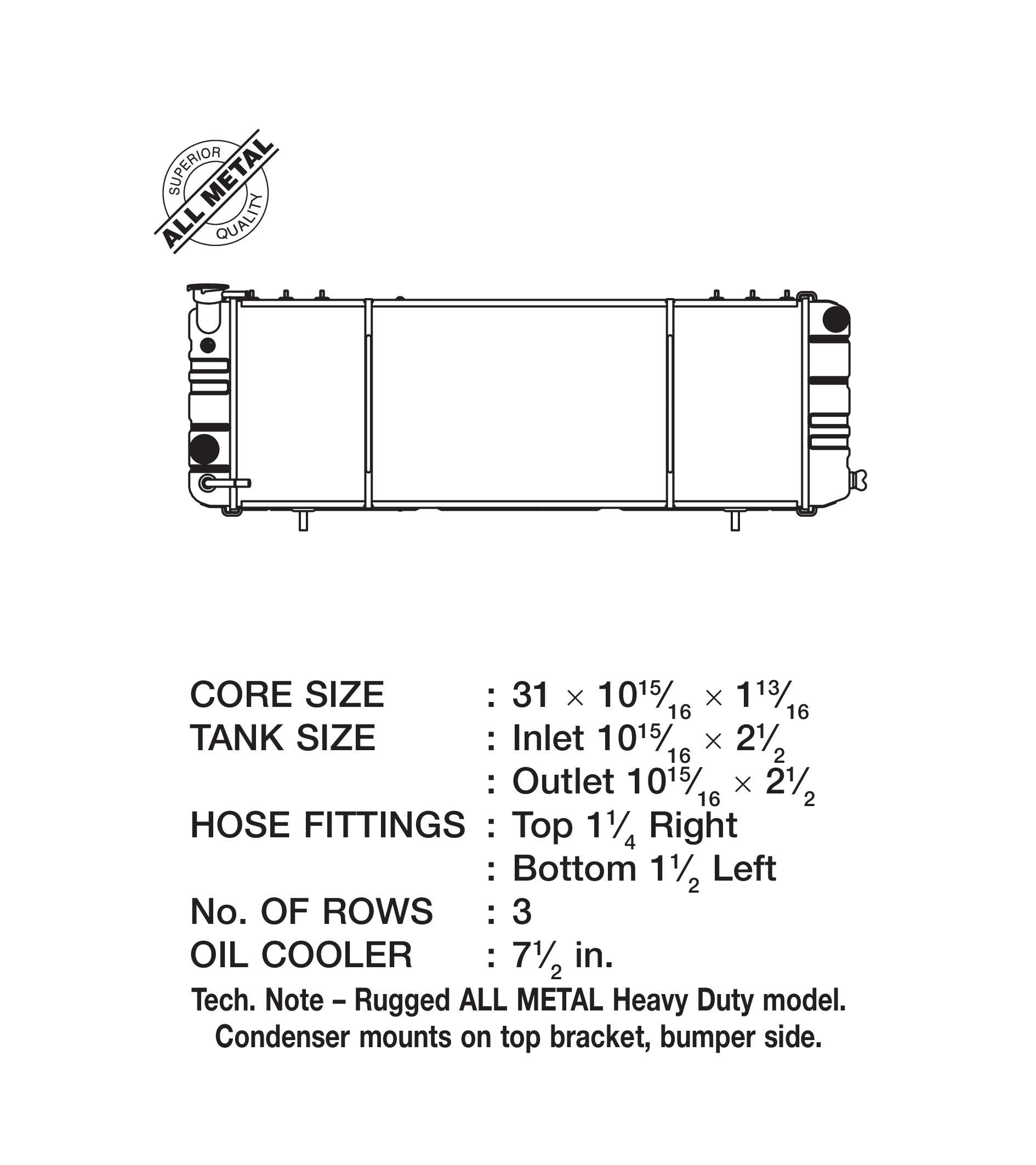

Core Length (in): 31 (in)
Core Material: Copper
Core Thickness (in): 1 11/16 (in)
Core Width (in): 10 15/16 (in)
Cross-flow/ Down-flow: Cross Flow
Csf Cap Number: 4501
Hazardous Material: No
Inlet Length (in): 11 1/8
Inlet Width (in): 2 1/2
No. Of Rows: 3
Oil Cooler (in): 7 1/2 (high-effeciency Concentric Type)
Outlet Length (in): 11 1/8
Outlet Width (in): 2 1/2
Radiator Cap Supplied: No
Tank Material: Brass
Tech Note: Rugged ALL METAL Heavy Duty model; Condenser mounts on top bracket, bumper side.
Top Hose Fitting (in): 1 1/4 Right (in)
Make Model Qualifiers Year
Jeep Cherokee
  • Position: N/A
  • 4.0L L6 242ci
  • XJ
1991-2001
Jeep Cherokee
  • Position: N/A
  • 2.5L L4 150ci
  • XJ
1998, 2000

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
1193DPI
52028132OEM
52028133OEM
5207 9682(HD)OEM
8011193APDI
895 2004 921OEM
CH3010186Partslink
CU1193SPI
