2572Radiator
3 Row All Metal Heavy Duty

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Copper-Brass Construction
  • Easy to recore & repair
  • No risk for coolant contamination and damage to sensitive seals, water pump & thermostat
  • OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability
  • Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • Side Channels - Coated Steel for Strength & Durability
  • Reinforced Inlet & Outlet Connections with "Thru Pipe Design"
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators
  • All components are installed, torqued & tested on Radiator during assembly

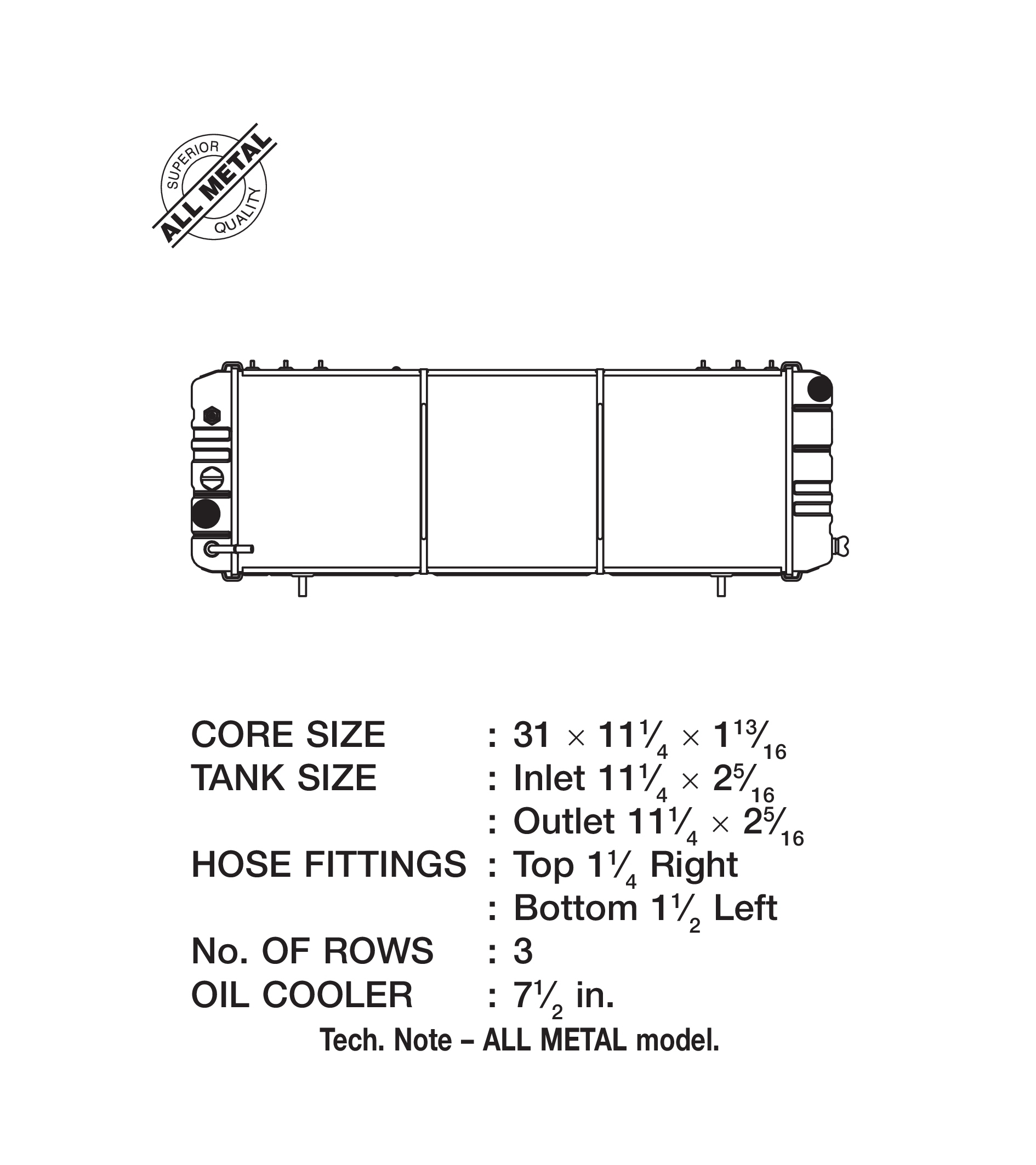

Bottom Hose Fitting (in): 1 1/2 Left (in)
Box Height (in): 5 4/16
Box Length (in): 38 3/4
Box Weight (lbs): 20
Box Width (in): 14 7/8
Core Length (in): 31 (in)
Core Material: Copper
Core Thickness (in): 1 11/16 (in)
Core Width (in): 10 15/16 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 11 1/8
Inlet Width (in): 2 1/2
No. Of Rows: 3
Oil Cooler (in): 7 1/2 (high-effeciency Concentric Type)
Outlet Length (in): 11 1/8
Outlet Width (in): 2 1/2
Radiator Cap Supplied: No
Tank Material: Brass
Tech Note: ALL METAL model.
Top Hose Fitting (in): 1 1/4 Right (in)
Make Model Qualifiers Year
Jeep Cherokee
  • Position: N/A
  • 4.0L L6 242ci
  • XJ
1988-1990
Jeep Comanche
  • Position: N/A
  • 4.0L L6 242ci
1987-1990
Jeep Wagoneer
  • Position: N/A
  • 4.0L L6 242ci
  • XJ
1987-1990

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
52003156OEM
52003157OEM
52003693OEM
52003694OEM
52003695OEM
52003696OEM
52003933OEM
78DPI
8010078APDI
895 2002 094OEM
895 2002 584OEM
895 2003 156OEM
895 2003 157OEM
895 2003 158OEM
895 2003 159OEM
895 2003 167OEM
8952003693OEM
8952003694OEM
8952003695OEM
8952003696OEM
895 2003 933OEM
CH3010193Partslink
CH3010194Partslink
CH3010195Partslink
CU78SPI
