10702A/C Condenser

A/C Condenser

Over 30 million units sold;ISO/TSO certified factories;Best packaging in the Industry
Box Height (in): 4 5/7
Box Length (in): 37
Box Weight (lbs): 13 1/2
Box Width (in): 21 6/7

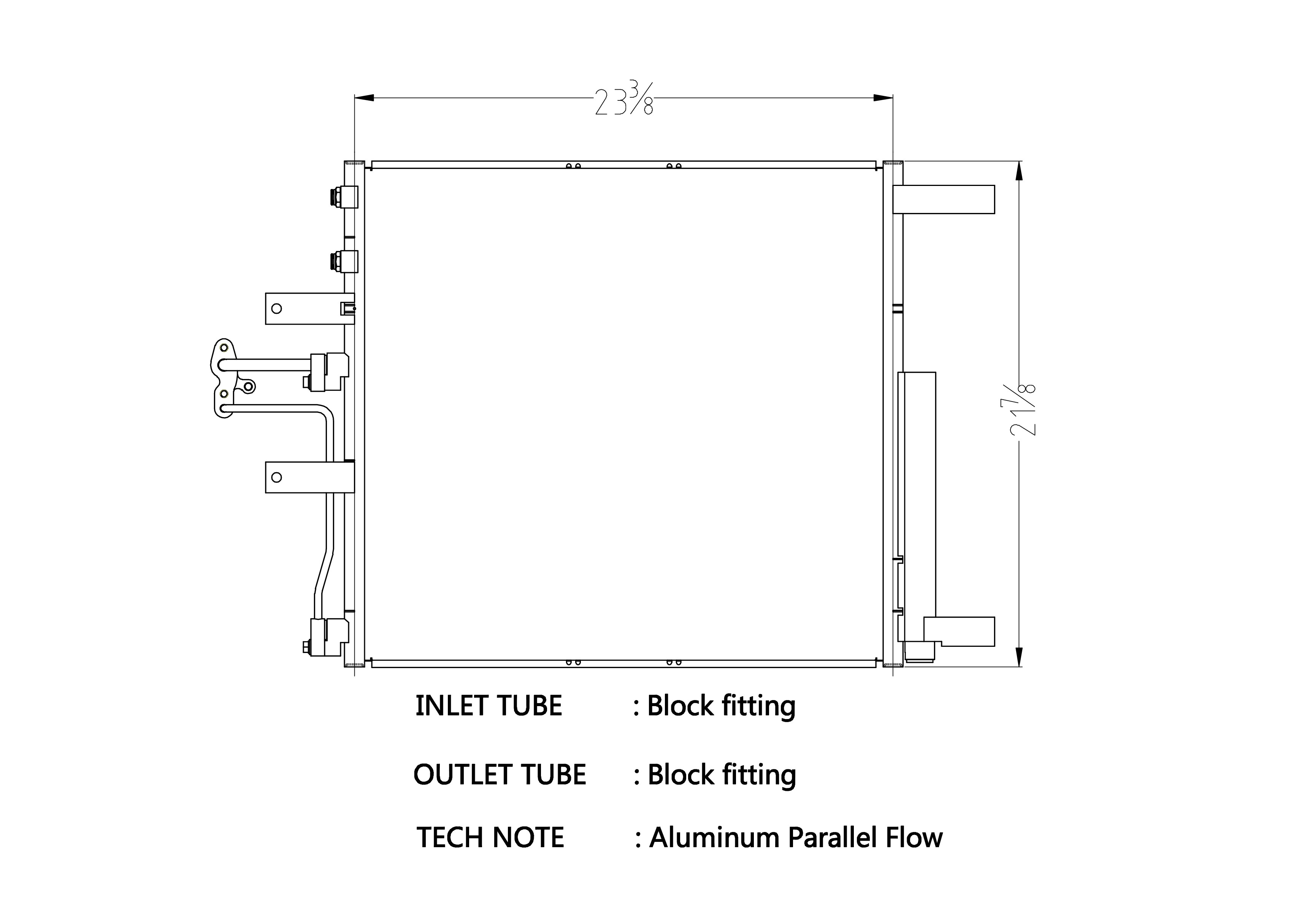

Construction: parallel flow
Core Length (in): 23 2/5 (in)
Core Thickness (in): 5/7 (in)
Core Width (in): 22 (in)
Hazardous Material: No
Inlet Tube: Block Fitting
Outlet Tube: Block Fitting
Make Model Qualifiers Year
Ram 1500
  • Position: N/A
  • 5.7L V8 345ci
  • 6
 2013-2018
Ram 1500
  • Position: N/A
  • 3.7L V6 226ci
 2012
Ram 1500
  • Position: N/A
  • 5.7L V8 345ci
 2012
Ram 1500
  • Position: N/A
  • 4.7L V8 287ci
 2012-2013
Ram 1500 Classic
  • Position: N/A
  • 5.7L V8 345ci
 2019-2021
Ram 2500
  • Position: N/A
  • 5.7L V8 345ci
 2012-2013
Ram 3500
  • Position: N/A
  • 5.7L V8 345ci
 2013

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
4436DPI
52014588ABOEM
52014588ADOEM
68092725AEOEM
7-4436SPI
CH3030259Partslink
